UC-2100 Series
Arm Cortex-A8 600 MHz palm-sized IIoT gateways with 1 Mini PCIe expansion slot for a wireless module
Features and Benefits
- Armv7 Cortex-A8 600-1000 MHz processor
- Palm-sized form factor, 50 x 80 x 28 mm
- MXview support for centralized monitoring of devices and computing status
- Unified APIs and push-based communication for retrieving data only when needed
- 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
- Gigabit Ethernet supported (UC-2112)
- Up to 2 software-selectable RS-232/422/485 ports supporting all signals
- Mini PCIe slot for Wi-Fi/cellular module (UC-2104)
- -40 to 75°C wide-temperature model available with hazardous locations certification
- Long-term Linux support until 2027; includes bug fixes and security patches
Certifications
- ATEX
- CE
- FCC
Introduction
The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC‑2100 for a variety of complex communications solutions. The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.
Models in this series (7)

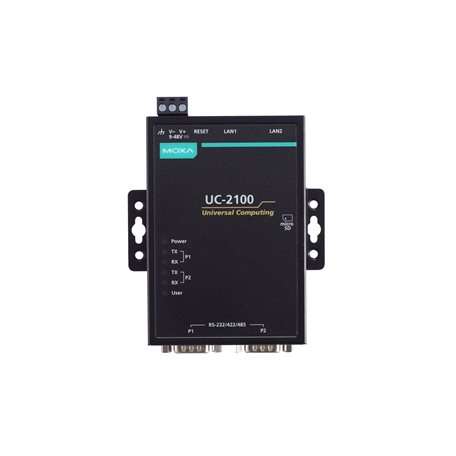

| — | UC-2101-LX | UC-2102-LX | UC-2104-LX | UC-2111-LX |
| CPU | Arm Cortex-A8 600 MHz | Arm Cortex-A8 600 MHz | Arm Cortex-A8 600 MHz | Arm Cortex-A8 600 MHz |
| RAM | 256 MB | 256 MB | 256 MB | 512 MB |
| Storage | 8 GB | 8 GB | 8 GB | 8 GB |
| Serial | 1 | – | – | 2 |
| Ethernet | 1 | 2 | 1 | 2 |
| microSD | – | – | – | 1 |
| Mini PCIe | – | – | 1 | – |
| Operating Temp. | -10 to 60°C | -10 to 60°C | -10 to 60°C | -10 to 60°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | UC-2112-LX | UC-2112-T-LX | — | — |
| CPU | Arm Cortex-A8 1000 MHz | Arm Cortex-A8 1000 MHz | ||
| RAM | 512 MB | 512 MB | ||
| Storage | 8 GB | 8 GB | ||
| Serial | 2 | 2 | ||
| Ethernet | 2 (1 Giga LAN) | 2 (1 Giga LAN) | ||
| microSD | 1 | 1 | ||
| Mini PCIe | – | – | ||
| Operating Temp. | -10 to 60°C | -10 to 75°C | ||
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for A-ADP-SM-RF Golden. Per-model differences are listed in the selection grid above.
Computer
- Storage Pre-installed
- 8 GB eMMC
- Supported OS
- Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL See www.moxa.com/MIL
Computer Interface
- Console Port
- RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
- Buttons
- Reset button DIP switch for serial port configuration
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 921.6 kbps
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
- Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
- ESD Protection
- 4 kV, for all signals
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
LED Indicators
- System
- Power x 1
Physical Characteristics
- Housing
- Metal
- Installation
- Wall mounting DIN-rail mounting (with optional kit)
Environmental Limits
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Shock
- IEC 60068-2-27
- Vibration
- 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Power Parameters
- Input Voltage
- 9 to 48 VDC
- Input Current
- 0.45 A @ 9 VDC, 0.084 A @ 48 VDC
- Power Consumption
- 4 W
MTBF
- Standards
- Telcordia (Bellcore) Standard TR/SR
Reliability
- Alert Tools
- External RTC (real-time clock)
- Automatic Reboot Trigger
- External WDT (watchdog timer)
Standards and Certifications
- EMC
- EN 55032/35 UKCA VCCI BIS
- EMI
- FCC Part 15B Class A ICES-003 Class A EN 55032 Class A EN 61000-6-4 Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Safety
- IEC 60950-1 UL 60950-1
- International Approval
- FCC CE UKCA VCCI BIS
- Green Product
- RoHS, CRoHS, WEEE
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
