UC-3100 Series
Arm Cortex-A8 1 GHz IIoT gateway with built-in LTE Cat. 1 and Wi-Fi modules
Features and Benefits
- Armv7 Cortex-A8 1000 MHz processor
- Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1 for the US, EU, and APAC regions
- Bluetooth 4.2 support
- LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
- Industrial CAN 2.0 A/B protocols supported
- -40 to 70°C operating temperature range
- Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
- Long-term Linux support until 2027; includes bug fixes and security patches
Certifications
- ATEX
- Iecex
- UL Listed
- CE
Introduction
Moxa’s UC-3100 Series computers can be used as smart gateways in the field for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The series includes a diverse set of models, each supporting different wireless options and protocols. The UC-3100’s advanced heat-dissipation design makes it suitable for use in temperatures ranging from -40 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize data pre-processing and transmission capabilities of your applications in harsh operating environments. The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 comes equipped with Moxa Industrial Linux, a high-performance industrial-grade Linux distribution with long-term support that is developed by Moxa.
Models in this series (13)
| — | UC-3101-T-US-LX | UC-3111-T-US-LX | UC-3111-T-US-LX-NW | UC-3121-T-US-LX |
| Carrier Approval | AT&T, Verizon | AT&T, Verizon | AT&T, Verizon | AT&T, Verizon |
| CPU | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz |
| SD Slot | – | 1 | 1 | 1 |
| Serial | 1 | 2 | 2 | 1 |
| CAN | – | – | – | 1 |
| LTE | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1 |
| Wi-Fi | – | ✓ | – | ✓ |
| BLT | – | ✓ | – | ✓ |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |

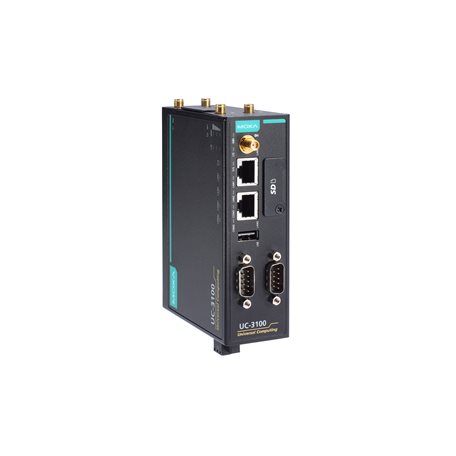

| — | UC-3101-T-EU-LX | UC-3111-T-EU-LX | UC-3111-T-EU-LX-NW | UC-3121-T-EU-LX |
| Carrier Approval | – | – | – | – |
| CPU | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz |
| SD Slot | – | 1 | 1 | 1 |
| Serial | 1 | 2 | 2 | 1 |
| CAN | – | – | – | 1 |
| LTE | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1 |
| Wi-Fi | – | ✓ | – | ✓ |
| BLT | – | ✓ | – | ✓ |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | UC-3101-T-AP-LX | UC-3111-T-AP-LX | UC-3111-T-AP-LX-NW | UC-3121-T-AP-LX |
| Carrier Approval | – | – | – | – |
| CPU | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz | Arm Cortex-A8 1 GHz |
| SD Slot | – | 1 | 1 | 1 |
| Serial | 1 | 2 | 2 | 1 |
| CAN | – | – | – | 1 |
| LTE | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1 |
| Wi-Fi | – | ✓ | – | ✓ |
| BLT | – | ✓ | – | ✓ |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for ANT-GPS-CSM-04-0.2m BK. Per-model differences are listed in the selection grid above.
Computer
- DRAM
- 1 GB DDR3
- Supported OS
- Linux Debian 9 kernel 4.4 (Moxa Industrial Linux) See www.moxa.com/MIL
- Storage Pre-installed
- 8 GB eMMC
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
- USB 2.0
- USB 2.0 hosts x 1, type-A connectors
- Cellular Antenna Connector
- SMA x 2
- SIM Format
- Nano
- Number of SIMs
- 2
- GPS Antenna Connector
- SMA x 1
- Console Port
- RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Data Bits
- 5, 6, 7, 8
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
LED Indicators
- System
- Power x 1
- Serial
- 1 per port (Tx, Rx)
- LAN
- 1 per port (10/100 Mbps)
Power Parameters
- Power Consumption
- UC-3101: 6 W (max.) UC-3111/UC-3121: 8 W (max.)
- Input Current
- 500 mA @ 12 VDC
- Input Voltage
- 9 to 36 VDC
Physical Characteristics
- Housing
- Metal
- Installation
- DIN-rail mounting Wall mounting (with optional kit)
- Dimensions (without ears)
- 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) for UC-3101 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in) for UC-3111/UC-3121
- Weight
- Product only: 550 g (1.22 lb)
Environmental Limits
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Vibration
- 5 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
- Shock
- IEC 60068-2-27
Standards and Certifications
- EMC
- EN 61000-6-2/-6-4 EN 55032/24
- EMI
- CISPR 22, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Carrier Approvals
- Verizon AT&T
- Cellular Standards
- EN 301511 EN 301908-1 EN 62311(MPE SAR) EN 301489-1/-52 EN 301489-1/17
- Radio Frequency
- FCC PTCRB RCM
- Safety
- IEC 60950-1 IEC 62368-1 UL 62368-1 UL 60950-1
- WLAN Standards
- EN 301489-1-17 EN 300328 EN 301893
- Green Product
- RoHS, CRoHS, WEEE
- Hazardous Locations
- Class I Division 2 IECEx ATEX
MTBF
- Standards
- Telcordia (Bellcore) Standard
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
