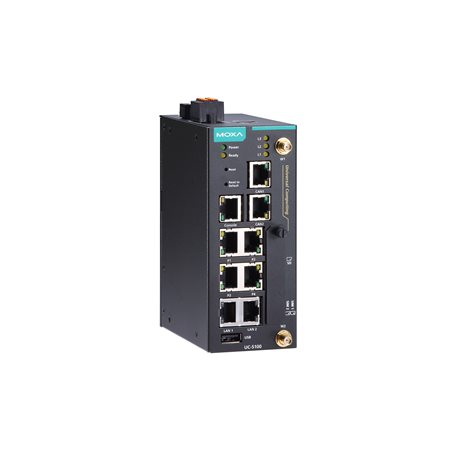

UC-5100 Series
Arm Cortex-A8 1 GHz IIoT gateways with 1 Mini PCIe expansion slot for wireless module, 4 serial ports, 2 CAN ports, 4 DIs, 4 DOs
Features and Benefits
- Armv7 Cortex-A8 1 GHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- 4 software-selectable RS-232/422/485 ports supporting all signals
- Dual CAN ports with industrial CAN 2.0 A/B protocol supported
- Mini PCIe socket for Wi-Fi/cellular module
- SD slot for storage expansion
- -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
- IEC 61000-6-2/6-4 standards for harsh industrial environments
- Long-term Linux support until 2027; includes bug fixes and security patches
Certifications
- UL Listed
- CE
- FCC
Introduction
The UC-5100 Series embedded computers are designed for industrial automation applications. The computers feature 4 RS-232/422/485 full signal serial ports with adjustable pull-up/pull-down resistors, 2 CAN ports, 2 Ethernet ports, 4 digital input channels, 4 digital output channels, USB interface, and an SD slot in a compact, front-end access housing. To fulfill various industrial applications, the UC-5100 Series computing platform provides models with 2 CAN ports and a mini PCIe slot for wireless connections featuring a dual-SIM design for network redundancy. The UC-5100’s vertical DIN-rail form factor makes it easy to install the computer in a small cabinet. This space-saving solution also facilitates easy wiring, making the UC-5100 a great choice as front-end embedded controllers for industrial applications. Furthermore, all models are equipped with Moxa Industrial Linux that comes with 10-year long-term support as well as optimized software features.
Models in this series (8)
| — | UC-5101-LX | UC-5102-LX | UC-5111-LX | UC-5112-LX |
| CPU | 1 GHz | 1 GHz | 1 GHz | 1 GHz |
| RAM | 512 MB | 512 MB | 512 MB | 512 MB |
| Storage | 8 GB | 8 GB | 8 GB | 8 GB |
| Ethernet | 2 | 2 | 2 | 2 |
| Serial | 4 | 4 | 4 | 4 |
| CAN | – | – | 2 | 2 |
| SD | 1 | 1 | 1 | 1 |
| USB | 1 | 1 | 1 | 1 |
| Mini PCIe | – | 1 (dual-SIM socket) | – | 1 (dual-SIM socket) |
| Operating Temp. | -10 to 60°C | -10 to 60°C | -10 to 60°C | -10 to 60°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | UC-5101-T-LX | UC-5102-T-LX | UC-5111-T-LX | UC-5112-T-LX |
| CPU | 1 GHz | 1 GHz | 1 GHz | 1 GHz |
| RAM | 512 MB | 512 MB | 512 MB | 512 MB |
| Storage | 8 GB | 8 GB | 8 GB | 8 GB |
| Ethernet | 2 | 2 | 2 | 2 |
| Serial | 4 | 4 | 4 | 4 |
| CAN | – | – | 2 | 2 |
| SD | 1 | 1 | 1 | 1 |
| USB | 1 | 1 | 1 | 1 |
| Mini PCIe | – | 1 (dual-SIM socket) | – | 1 (dual-SIM socket) |
| Operating Temp. | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for UC-5101-LX. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Armv7 Cortex-A8 1 GHz
- DRAM
- 512 MB DDR3
- Supported OS
- Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL See www.moxa.com/MIL
- Storage Pre-installed
- 8 GB eMMC
- Storage Slot
- SD slots x 1
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
- Serial Ports
- RS-232/422/485 ports (software-selectable, RJ45 connector) x 4
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- USB 2.0
- USB 2.0 hosts x 1, type-A connectors
- Number of SIMs
- 2
- SIM Format
- Micro
- Buttons
- Reset button DIP switch for serial and CAN port configuration
- Console Port
- RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 921.60 kbps
- Data Bits
- 7, 8
- Stop Bits
- 1, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
Digital Inputs
- Voltage
- 0 to 0.8 VDC 2.0 to 5.5 VDC
Digital Outputs
- Current Rating
- 24 mA per channel
- Voltage
- 0 to 0.55 VDC 2.5 to 3.3 VDC
LED Indicators
- System
- Programmable x 3
- LAN
- 2 per port (10/100 Mbps)
- Serial
- 2 per port (Tx, Rx)
Physical Characteristics
- Dimensions
- 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
- Weight
- 600 g (1.32 lb)
- Housing
- Metal
- Installation
- DIN-rail mounting Wall mounting (with optional kit)
Power Parameters
- Input Voltage
- 9 to 48 VDC
- Input Current
- 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
- Power Consumption
- 11 W
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature
- -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Vibration
- 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
- Shock
- IEC 60068-2-27
Standards and Certifications
- EMC
- EN 55032/35 EN 61000-6-2/-6-4 UKCA VCCI
- EMI
- EN 55032 Class A EN 61000-6-4 Class A FCC Part 15B Class A ICES-003 Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.4 GHz to 6 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line to line: 1 kV; line to PE: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- International Approval
- CE FCC UKCA VCCI
- Safety
- EN 62368-1 IEC 62368-1 UL 62368-1
- Green Product
- RoHS, CRoHS, WEEE
Reliability
- Alert Tools
- External RTC (real-time clock)
- Automatic Reboot Trigger
- External WDT (watchdog timer)
MTBF
- Time
- 778,595 hrs
- Standards
- Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
