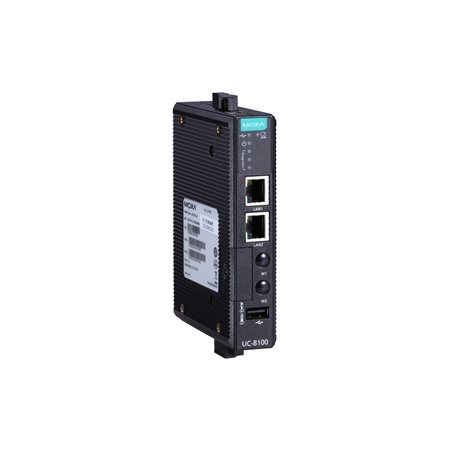

UC-8100 Series
Arm Cortex-A8 300 MHz/600 MHz/1 GHz IIoT gateways with 1 Mini PCIe expansion slot for a wireless module, -10 to 60°C operating temperature
Features and Benefits
- Armv7 Cortex-A8 300/600/1000 MHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- Rich programmable LEDs and a programmable button for easy installation and maintenance
- Long-term Linux support until 2027; includes bug fixes and security patches
- Debian 9 open platform
Certifications
- UL Listed
- CE
- FCC
Introduction
The UC-8100 computing platform is designed for embedded data-acquisition applications. The computer comes with one or two RS-232/422/485 serial ports and dual 10/100 Mbps Ethernet LAN ports, as well as a mini PCIe slot to support cellular modules. These versatile communication capabilities let users efficiently adapt the UC-8100 to a variety of complex communications solutions. The UC-8100 is built around a Cortex-A8 Arm–based processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communication platform for many other large-scale deployments.
Models in this series (6)
| — | UC-8131-LX | UC-8132-LX | UC-8162-LX | UC-8112-LX |
| CPU | Armv7 Cortex-A8 300 MHz | Armv7 Cortex-A8 300 MHz | Armv7 Cortex-A8 600 MHz | Armv7 Cortex-A8 1 GHz |
| RAM | 256 MB | 256 MB | 512 MB | 512 MB |
| Storage | 8 GB eMMC | 8 GB eMMC | 8 GB eMMC | 8 GB eMMC |
| Storage Slot | SD Card | SD Card | SD Card | SD Card |
| mPCIe Socket for Wireless Module | 1 | 1 | 1 | 1 |
| Serial Ports | 1 | 2 | 2 | 2 |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for UC-8100 LTE-CAT4-EU. Per-model differences are listed in the selection grid above.
Computer
- Supported OS
- Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL See www.moxa.com/MIL
- Storage Pre-installed
- 8 GB eMMC
- Storage Slot
- SD slots x 1
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
- USB 2.0
- USB 2.0 hosts x 1, type-A connectors
- SIM Format
- Mini
- Buttons
- Reset button
- Console Port
- RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 300 bps to 921.6 kbps
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
LED Indicators
- System
- Power x 1 SD slots x 1 Programmable x 3 USB x 1
- Wireless Signal Strength
- Cellular/Wi-Fi x 3
Power Parameters
- Input Voltage
- 12 to 24 VDC
- Input Current
- 480 mA @ 12 VDC 225 mA @ 24 VDC
- Power Consumption
- 5.4 W
Reliability
- Alert Tools
- RTC (real-time clock)
- Automatic Reboot Trigger
- Built-in WDT
Physical Characteristics
- Dimensions
- 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
- Weight
- 224 g (0.5 lb)
- Housing
- Plastic
- Installation
- DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature
- -10 to 60°C (14 to 140°F)
- Storage Temperature (package included)
- -20 to 80°C (-4 to 176°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Shock
- IEC 60068-2-27
- Vibration
- 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications
- EMC
- EN 55032/35 BIS UKCA UC-8162 KC UC-8112 BSMI
- EMI
- EN 55032 Class A EN 61000-6-4 Class A FCC Part 15B Class A ICES-003 Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Safety
- UL 60950-1
- International Approval
- BIS CE FCC ISED UKCA UC-8162 KC UC-8112 BSMI
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Standards
- Telcordia (Bellcore) Standard
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
