UC-8410A Series
Arm Cortex-A7 dual-core 1 GHz IIoT gateways with 1 Mini PCIe expansion slot for a wireless module, 3 LAN ports, 8 serial ports, 4 DIs, 4 DOs
Features and Benefits
- Freescale LS1021A Cortex-A7 1 GHz dual-core processor
- 1 GB DDR3 SDRAM
- 8 RS-232/422/485 serial ports
- 3 10/100/1000 Mbps Ethernet ports
- Wireless-enabled with PCIe mini slot
- 2 USB 2.0 hosts for mass storage devices
- Wall-mounting installation
- Robust, fanless design
- -40 to 75°C wide-temperature model available
- Long-term Linux support until 2027; includes bug fixes and security patches
Certifications
- UL Listed
- CE
- FCC
Introduction
The UC-8410A Series embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts. The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 8 GB eMMC card and 1 GB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage. The UC-8410A computers come with a variety of communication interfaces, including serial ports, Ethernet ports, wireless communication slot, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications. The UC-8410A Series comes with Linux Debian 8 preinstalled to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications, but at minimal cost and effort. In addition to the standard model of the UC-8410A, a -40 to 75°C wide-temperature model is available for harsh industrial environments.
Models in this series (5)

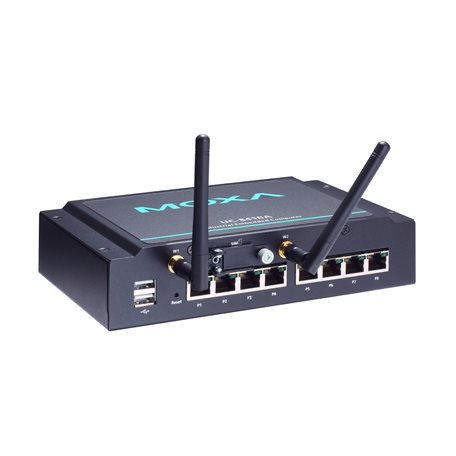

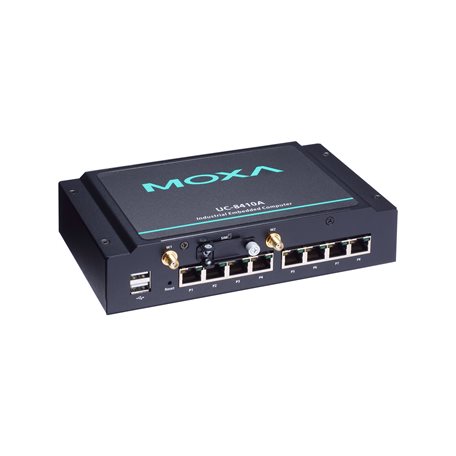

| — | UC-8410A-LX | UC-8410A-T-LX | UC-8410A-NW-LX | UC-8410A-NW-T-LX |
| CPU | Armv7 Cortex-A7 dual-core 1 GHz | Armv7 Cortex-A7 dual-core 1 GHz | Armv7 Cortex-A7 dual-core 1 GHz | Armv7 Cortex-A7 dual-core 1 GHz |
| OS | Debian 8 | Debian 8 | Debian 8 | Debian 8 |
| mPCIe Slot for Wireless Module | ✓ | ✓ | – | – |
| SIM Slots | 1 | 1 | – | – |
| Operating Temp. | -10 to 60°C | -40 to 75°C -40 to 70°C (with Wi-Fi) | -10 to 60°C | -40 to 75°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for UC-8410A LTE-CAT4-EU. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Armv7 Cortex-A7 dual-core 1 GHz
- System Memory Pre-installed
- 1 GB DDR3L
- Storage Pre-installed
- 8 GB eMMC
- Storage Slot
- SD slots x 1 mSATA slots x 1, internal mini-PCIe socket
- Supported OS
- Linux Debian 8 (Linux kernel v4.1), 2022 EOL Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL See www.moxa.com/MIL
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3
- Serial Ports
- RS-232/422/485 ports x 8, software selectable (RJ45)
- USB 2.0
- USB 2.0 hosts x 2, type-A connectors
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- Console Port
- 1 x 4-pin header to DB9 console port
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Channel-to-Channel Isolation
- 3000 VDC
- Connector
- Screw-fastened Euroblock terminal
- Dry Contact
- On: short to GND Off: open
- Sensor Type
- Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM)
- On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- Current Rating
- 200 mA per channel
- I/O Type
- Sink
- Voltage
- Open-drain to 30 VDC
LED Indicators
- System
- Power x 1 System ready x 1 Storage x 1 Programmable x 10
- LAN
- 2 per port (10/100/1000 Mbps)
- Serial
- 2 per port (Tx, Rx)
Power Parameters
- Input Current
- 1.57A @ 12 VAC max.
- Input Voltage
- 12 to 48 VDC
- Power Consumption
- 19 W (max.)
- Power Connector
- Terminal block (for DC models)
Physical Characteristics
- Dimensions
- 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in)
- Weight
- 1,000 g (2.21 lb)
- Housing
- Metal
- IP Rating
- IP30
- Installation
- Wall mounting (standard)
Environmental Limits
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
- Safety
- UL/IEC 60950-1 & 62368-1
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
