V1200 Series
Arm-based compact rail computers with options for wireless and cellular expansion
Features and Benefits
- Arm Cortex-A53 quad-core 1.6 GHz processor
- Slim, compact design with multiple mounting options
- Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
- Built-in TPM 2.0 module
- Moxa Industrial Linux built-in for long-term Linux support
- Isolated power with 24 to 110 VDC power supply range
- Complies with all EN 50155 mandatory test items
Certifications
- En50121 4
- CE
- En50155
- FCC
Introduction
The V1200 computing platform is designed for railway TCMS data-acquisition and train-to-ground applications. The computer comes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G and Wi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compact design with multiple mounting options reduces installation space and provides flexibility for mounting in various cabinets or onboard locations. The V1200 comes with Moxa Industrial Linux (MIL) and long-term Linux support and vulnerability patching. A web-based interface is provided for easy configuration of Ethernet and wireless network settings without the need for programming. The V1200 wireless-enabled models are thoroughly tested in a testing chamber, guaranteeing they meet the EN 50155 mandatory requirements and OT4 operating temperature (-40 to 70°C with cellular and Wi- Fi modules enabled) requirements, making them suitable for wide-temperature applications.
Models in this series (8)

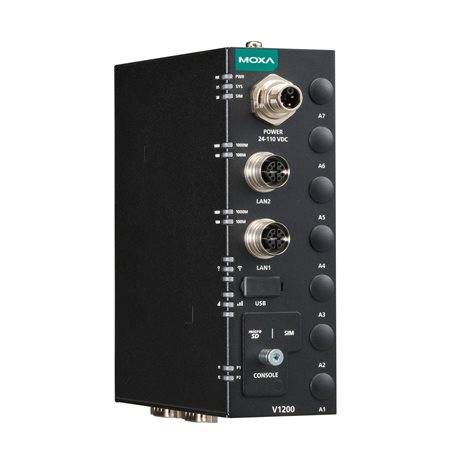

| — | V1202-CT-T | V1222-CT-T | V1222-W-CT-T | — |
| CPU | Arm Cortex-A53 quad-core 1.6 GHz | Arm Cortex-A53 quad-core 16 GHz | Arm Cortex-A53 quad-core 16 GHz | |
| eMMC | 16 GB | 16 GB | 16 GB | |
| LPDDR4 | 4 GB | 4 GB | 4 GB | |
| GbE Ports | 2 | 2 | 2 | |
| Serial Ports | N/A | 2 | 2 | |
| Wireless | N/A | M.2 Ekey, M.2 Bkey, mPCIe socket reserved for Wi-Fi 6, 5G, or LTE Note: 5G and LTE module can not be enabled simultaneously. | 5G / Wi-Fi 6 Built-in | |
| Operating Temperature | -40 to 70°C | -40 to 70°C | -40 to 70°C | |
| Conformal Coating | ✓ | ✓ | ✓ | |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for V1200-5G. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Arm Cortex-A53 quad-core 1.6 GHz
- DRAM
- 4 GB LPDDR4
- Supported OS
- Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL
- Storage Pre-installed
- 16 GB eMMC
- Expansion Slots
- microSD socket x 1
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Serial Ports
- V1222-CT-T, V1222-W-CT-T: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- USB 2.0
- USB 2.0 hosts x 1, type-A connectors
- Wi-Fi Antenna Connector
- V1222-CT-T, V1222-W-CT-T: QMA x 2
- Cellular Antenna Connector
- V1222-CT-T, V1222-W-CT-T: QMA x 4
- GPS Antenna Connector
- V1222-CT-T, V1222-W-CT-T: QMA x 1
- Console Port
- RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)
- Expansion Slots
- M.2 E-key slot x1 (for Wi-Fi 6) M.2 B-key slot x1 (for 5G) mPCIe slot x1 (for LTE) Note: 5G and LTE cannot be operated at the same time. Note: 5G and LTE cannot be operated at the same time.
- SIM Format
- V1222-CT-T, V1222-W-CT-T: Nano
- Number of SIMs
- V1222-CT-T: 2 for 5G or 2 for LTE V1222-W-CT-T: 2 for 5G
- Buttons
- Reset button
- TPM
- TPM v2.0
Serial Interface
- No. of Ports
- V1222-CT-T, V1222-W-CT-T: 2
- Baudrate
- 50 bps to 115.20 kbps
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
- Isolation
- N/A
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface
- LTE Bands (LTE module)
- Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz)
- 5G NR Bands (5G module)
- NSA and SA bands: n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n12 (700 MHz), n13 (700 MHz), n14 (700 MHz), n18 (800 MHz), n20 (800 MHz), n25 (1900 MHz), n26 (850 MHz), n28 (700 MHz), n29 (700 MHz), n30 (2300 MHz), n38 (2600 MHz),n40 (2300 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)
- UMTS/HSPA Bands (LTE module)
- Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)
- UMTS/HSPA Bands (5G module)
- Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)
- LTE Bands (5G module)
- B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18 (800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)
- 2G Bands (LTE module)
- Band 2 (PCS_1900), Band 3 (DCS_1800), Band 5 (GSM_850), Band 8 (EGSM_900)
- Cables
- 5G module: IPEX MHF4 to QMA cables x 5 (4 for data transition, 1 for GNSS) LTE Module: IPEX MHF to QMA cables x 3 (2 for data transition, 1 for GNSS)
GPS Interface
- Frequency Range
- 5G module: Wide-band GNSS: 1559 to 1606 MHz (recommended) GPS: BW NB GPS 2.046 MHz (centered at 1575.42 MHz) GLONASS: BW 8.3 MHz approx. (1597.05 to 1606 MHz) BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz) Galileo: 4.092 MHz BW (centered at 1575.42 MHz) LTE module: Wide-band GNSS: 1559 to 1606 MHz (recommended) State-of-the-art GNSS solution with GPS/GLONASS/BeiDou/Galileo/QZSS
- Antenna Types Supported
- 5G module: Active antenna (default) 7.5 dB < Gain < 26 dB for nominal performance 1.5 dB < Gain < 7.5 dB for nominal performance Configured via AT command Passive antenna: 1.5 dBi < Gain < 3dBi LTE module: Typ. 14 dBi < Gain < 17 dBi (external active antenna with a GNSS pre-filter)
- Time to First Fix (TTFF)
- 5G module: Hot start: 1 s Warm start: 27 s Cold start: 28 s Open Sky, mean TTFF LTE module: Hot start: 1.1s Warm start: 22.1s Cold start: 29.9s GPS + GLONASS simulator test
- Sensitivity
- 5G module: Cold starts: -146 dBm Tracking: -161 dBm Acquisition: -148 dBm LTE module: Cold starts: -145 dBm Tracking: -160 dBm Acquisition: -147 dBm
- Update Rate
- Minimum 1 Hz
WLAN Interface
- WLAN Standards
- 802.11a/b/g/n/ac/ax
- Frequency Band
- 2.4 GHz / 6 GHz 2.4 GHz / 5 GHz
LED Indicators
- System
- Power x 1 System x 1 SIM card indicator x 1
- LAN
- 2 ports, 1 per port (10/100/1000 Mbps)
- Serial
- V1222-CT-T, V1222-W-CT-T: 1 LED per port for 2 serial ports
- Wireless Signal Strength
- Cellular x 3 Wi-Fi x 3
Power Parameters
- No. of Power Inputs
- 1
- Input Voltage
- 24 to 110 VDC
- Input Current
- V1202-CT-T: 0.4 A @ 24 VDC, 0.1A @ 110 VDC V1222-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC V1222-W-CT-T: 0.6 A @ 24 VDC, 0.13A @ 110 VDC
- Power Consumption
- V1202-CT-T: 7.4 W at 95% CPU loading V1222-W-CT-T: 13.7 W (with 5G & Wi-Fi) at 95% CPU loading
- Power Connector
- M12 K-code power connector
- Reverse Polarity Protection
- Supported
Reliability
- Automatic Reboot Trigger
- External RTC (real-time clock)
- Alert Tools
- External WDT (watchdog timer)
Physical Characteristics
- Housing
- Metal SECC
- IP Rating
- IP40
- Dimensions
- V1202-CT-T: 150 x 120 x 41 mm (5.90 x 4.72 x 1.61 in) V1222-CT-T / V1222-W-CT-T: 150 x 120 x 50 mm (5.90 x 4.72 x 1.97 in)
- Weight
- Product only (without mounting ears) V1202-CT-T: 665 g (1.47 lb) V1222-CT-T : 935 g (2.06 lb) V1222-W-CT-T : 1,005 g (2.22 lb)
- Installation
- Wall mounting (standard) Desk mounting (with optional kit) DIN-rail mounting (with optional kit)
Environmental Limits
- Operating Temperature
- With Cellular and Wi-Fi: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35 EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V IEC 61000-4-8 PFMF
- Wireless
- EN 301 489-1/-17/-19/-52 EN 62311 EN 300 328 (WLAN 2.4G) EN 301 893 (WLAN 5G) EN 303 687 (WLAN 6 GHz) EN 301 908-1 EN 303 413 FCC UKCA
- International Approval
- FCC CE UKCA RCM (V1202-CT-T and V1222-CT-T)
- Safety
- IEC 62368-1 UL 62368-1
- Railway Fire Protection
- EN 45545-2 NFPA130
- Railway
- EN 50155: 2021 EN 50121-4
- Shock
- IEC 60068-2-27 IEC 61373 EN 50155
- Vibration
- IEC 60068-2-64 IEC 61373 EN 50155
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- V1202-CT-T: 2,755,789 hrs V1222-CT-T: 1,430,568 hrs V1222-W-CT-T: 1,324,329 hrs
- Standards
- Telcordia Standard SR332, GB
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
