BXP-C100 Series
Box computers with Tiger Lake 11th Gen Intel® Core™ processor base model and high-interface models
Features and Benefits
- Box-type computer with fanless design
- 11th Gen Intel® Celeron® or Intel® Core® processor
- Rich interface options for up to 10 serial and 10 LAN ports
- Compact size to fit most field applications
- DNV, CID2, ATEX, and IECEx certified
- -30 to 60°C operating temperature range
Certifications
- DNV
- UL Listed
- ATEX
- Iecex
Introduction

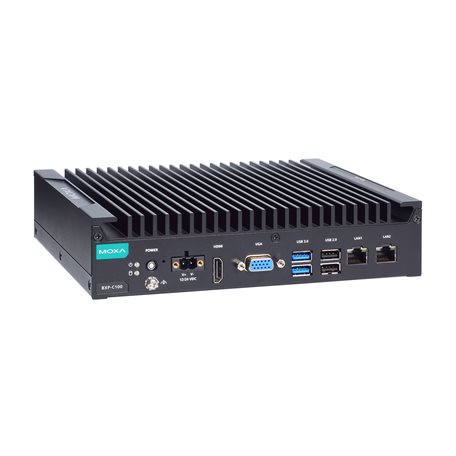

The BXP-C100 wall-mount computers are powered by a 11th Gen Intel® Celeron® or Intel® Core™i5, or i7 processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments. The BXP-C100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C100 Series is an intelligent computing solution that fulfills both OT and IT requirements in industrial environments.
Models in this series (15)
| — | BXP-C100-C1-T | BXP-C100-C1-T-Win10 | BXP-C100-C1-8L-T | BXP-C100-C1-8C-T |
| CPU | Intel® Celeron® 6305E | Intel® Celeron® 6305E | Intel® Celeron® 6305E | Intel® Celeron® 6305E |
| RAM | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | Win 10 LTSC (64 GB CFast) | – | – |
| LAN/Serial Ports | 2/2 | 2/2 | 10/2 | 2/10 |
| USB 2.0/USB 3.0 Ports | 4/2 | 4/2 | 4/2 | 4/2 |
| DIs/ DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | BXP-C100-C1-2L3C-T | BXP-C100-C5-T | BXP-C100-C5-T-Win10 | BXP-C100-C5-8L-T |
| CPU | Intel® Celeron® 6305E | Intel® Core® i5-1145G7E | Intel® Core® i5-1145G7E | Intel® Core® i5-1145G7E |
| RAM | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | – | Win 10 LTSC (64 GB CFast) | – |
| LAN/Serial Ports | 4/5 | 2/2 | 2/2 | 10/2 |
| USB 2.0/USB 3.0 Ports | 4/2 | 4/2 | 4/2 | 4/2 |
| DIs/ DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | BXP-C100-C5-8C-T | BXP-C100-C5-2L3C-T | BXP-C100-C7-T | BXP-C100-C7-T-Win10 |
| CPU | Intel® Core® i5-1145G7E | Intel® Core® i5-1145G7E | Intel® Core® i7-1185G7E | Intel® Core® i7-1185G7E |
| RAM | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | – | – | (64 GB CFast) |
| LAN/Serial Ports | 2/10 | 4/5 | 2/2 | 2/2 |
| USB 2.0/USB 3.0 Ports | 4/2 | 4/2 | 4/2 | 4/2 |
| DIs/ DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | BXP-C100-C7-8L-T | BXP-C100-C7-8C-T | BXP-C100-C7-2L3C-T | — |
| CPU | Intel® Core® i7-1185G7E | Intel® Core® i7-1185G7E | Intel® Core® i7-1185G7E | |
| RAM | 8 GB | 8 GB | 8 GB | |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | |
| OS Preinstalled | – | – | – | |
| LAN/Serial Ports | 10/2 | 2/10 | 4/5 | |
| USB 2.0/USB 3.0 Ports | 4/2 | 4/2 | 4/2 | |
| DIs/ DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | 4 x DIs 4 x DOs | |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for BXP-C100-C1-2L3C-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- BXP-C100-C1 models: Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz) BXP-C100-C5 models: Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz) BXP-C100-C7 models: Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)
- System Memory Slot
- SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed
- 8 GB DDR4
- Storage Slot
- CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)
- Storage Pre-installed
- BXP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10: 64 GB CFast card
- Supported OS
- Windows Images and Drivers Supported: - Windows 11 IoT Enterprise LTSC 2024 64-bit - Windows 11 Professional 64-bit - Windows 10 IoT Enterprise LTSC 2021 64-bit Linux drivers supported: - Debian 12 (kernel 6.1) - Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14)
- Graphics Controller
- Intel® UHD Graphics
Computer Interface
- Ethernet Ports
- BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10 BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 All other models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports
- BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T: RS-232/422/485 ports x 10, software selectable (DB9 male) x 10 BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: RS-232/422/485 ports x 5, software selectable (DB9 male) x 5 All other models: RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
- USB 3.0
- USB 3.0 hosts x 2, type-A connectors
- USB 2.0
- USB 2.0 hosts x 4, type-A connectors
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- TPM
- TPM v2.0
- Video Output
- HDMI 2.0b x 1, (type-A connector) VGA x 1, 15-pin D-sub connector (female)
- Buttons
- Reset button Power button
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- Data Bits
- 5, 6, 7, 8
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
- Flow Control
- RTS/CTS, XON/XOFF
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector
- Spring-type Euroblock terminal
- Sensor Type
- Dry contact
- Dry Contact
- Logic 0: Short to GND Logic 1: Open
Digital Outputs
- Connector
- Spring-type Euroblock terminal
- I/O Type
- Sink
- Current Rating
- 200 mA per channel
- Voltage
- 0 to 24 VDC
LED Indicators
- System
- Power x 1 Storage x 1
- LAN
- 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage
- 12/24 VDC
- Power Connector
- Screw-fastened Euroblock terminal
- Power Consumption
- 90 W
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP20
- Dimensions
- BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10: 210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in) BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T/C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: 210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in) BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T: 210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
- Weight
- BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10: 2,015 g (4.44 Ib) BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T: 2,355 g (5.19 Ib) BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T: 2,208 g (4.86 Ib) BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T: 2,385 g (5.25 Ib)
- Installation
- Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature
- -30 to 60°C (-22 to 140°F)
- Storage Temperature
- -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A BSMI
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Hazardous Locations
- ATEX IECEx Class I Division 2
- Maritime
- DNV-CG-0339 IEC 60945 IACS E10
- Safety
- UL 62368-1 EN 62368-1 IEC 62368-1 BSMI
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64, DNV-CG-0339 Class A IEC 60068-2-6 IEC 60945
- Package Drop Test
- ISTA 1A
- Package Vibration Test
- ISTA 1A
- Environmental Testing
- IEC 60068-2-1, DNV-CG-0339 IEC 60068-2-1, IEC 60945 IEC 60068-2-2, DNV-CG-0339 IEC 60068-2-2, IEC 60945
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Reliability
- Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger
- Built-in WDT
MTBF
- Time
- 1,517,956 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
