BXP-C101 Series
Compact box computers with 14th Gen Intel® Core™ Raptor Lake-U Refresh processor
Features and Benefits
- Box-type computer with fanless design
- Intel® Core™ Raptor Lake-U Refresh processor
- Compact size to fit most field applications
- Dual storage with a removable cover design for easy maintenance
- -30 to 70°C operating temperature range
Certifications
- FCC
- UL Listed
- CE
Introduction

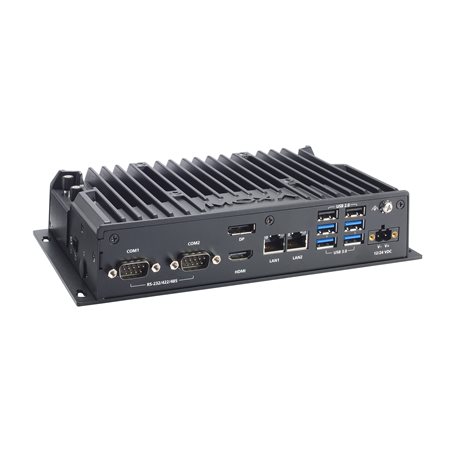

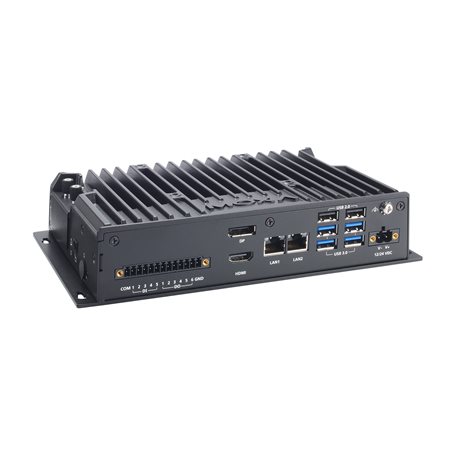

The BXP-C101 Series computer models are built around an Intel® Core™ 3-100U, 5-120U, or 7-150U processor. The computers come with a rich set of interface options including either two serial ports (S1 models) or five digital inputs and six digital outputs (S2 models), two gigabit Ethernet ports, six USB ports, one HDMI port, and one DisplayPort. A dual-storage design that includes CFast and M.2 slots enables easy storage expansion. The BXP-C101 computers have a compact design and come with wall-mounting kit attached. The computers are fanless enabling them to withstand a temperature range of -30 to 70°C and making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements for various industrial environments.
Models in this series (6)
| — | BXP-C101-C3-S1-T | BXP-C101-C3-S2-T | BXP-C101-C5-S1-T | BXP-C101-C5-S2-T |
| CPU | Intel® Core™ 3-100U | Intel® Core™ 3-100U | Intel® Core™ 5-120U | Intel® Core™ 5-120U |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x Cfast, 1 x M.2 M-key | 1 x Cfast, 1 x M.2 M-key | 1 x Cfast, 1 x M.2 M-key | 1 x Cfast, 1 x M.2 M-key |
| OS Preinstalled | – | – | – | – |
| LAN Ports | 2 | 2 | 2 | 2 |
| Serial Ports | 2 | – | 2 | – |
| USB Ports | 4 x USB 3.0 2 x USB 2.0 | 4 x USB 3.0 2 x USB 2.0 | 4 x USB 3.0 2 x USB 2.0 | 4 x USB 3.0 2 x USB 2.0 |
| DIs/ DOs | – | 5 DIs 6 DOs | – | 5 DIs 6 DOs |
| Video Outputs | 1 x HDMI 2.1 1 x DisplayPort | 1 x HDMI 2.1 1 x DisplayPort | 1 x HDMI 2.1 1 x DisplayPort | 1 x HDMI 2.1 1 x DisplayPort |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag |
| — | BXP-C101-C7-S1-T | BXP-C101-C7-S2-T | — | — |
| CPU | Intel® Core™ 7-150U | Intel® Core™ 7-150U | ||
| Memory | 8 GB | 8 GB | ||
| Storage Slots | 1 x Cfast, 1 x M.2 M-key | 1 x Cfast, 1 x M.2 M-key | ||
| OS Preinstalled | – | – | ||
| LAN Ports | 2 | 2 | ||
| Serial Ports | 2 | – | ||
| USB Ports | 4 x USB 3.0 2 x USB 2.0 | 4 x USB 3.0 2 x USB 2.0 | ||
| DIs/ DOs | – | 5 DIs 6 DOs | ||
| Video Outputs | 1 x HDMI 2.1 1 x DisplayPort | 1 x HDMI 2.1 1 x DisplayPort | ||
| Power Input | 12/24 VDC | 12/24 VDC | ||
| — | Add to Quote View Bag | Add to Quote View Bag |
Specifications
Shown for BXP-C101-C3-S1-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- BXP-C101-C3 models: Intel® Core™ 3-100U processor (6 cores, 10 MB Intel® smart cache, 1.2 GHz) BXP-C101-C5 models: Intel® Core™ 5-120U processor (10 cores, 12 MB Intel® smart cache, 1.4 GHz) BXP-C101-C7 models: Intel® Core™ 7-150U processor (10 cores, 12 MB Intel® smart cache, 1.8 GHz)
- System Memory Slot
- SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed
- 8 GB DDR4
- Storage Slot
- CFast slot x 1 (SATAIII interface) M.2 M-key 2242 sockets x 1 (PCIe Gen 4 x4)
- Expansion Slots
- mPCIe slots x 1
- Supported OS
- Windows images and drivers supported: - Windows 11 Professional 64-bit - Windows 11 IoT Enterprise LTSC 2024 64-bit - Windows 10 IoT Enterprise LTSC 2021 64-bit Linux drivers supported: - Debian 13 - Ubuntu 24.04 LTS - RHEL 9
- Graphics Controller
- Intel® UHD Graphics
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports
- S1 models: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- Digital Input
- DIs x 5
- Digital Output
- DOs x 6
- Video Output
- HDMI 2.1 TMDS x 1, (type-A connector) DisplayPort 1.2 x 1
- USB
- USB 3.0 hosts x 4, type-A connectors USB 2.0 hosts x 2, type-A connectors
- SIM Format
- Nano
- Number of SIMs
- 1
- Buttons
- Power button
- TPM
- TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Bitrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- Data Bits
- 5, 6, 7, 8
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector
- Spring-type Euroblock terminal
- Sensor Type
- Dry contact Wet contact (NPN)
- Dry Contact
- Logic 0: Close to GND Logic 1: Open
- Wet Contact (COM to DI)
- Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Connector
- Spring-type Euroblock terminal
- I/O Type
- Sink
- Voltage
- 0 to 30 VDC
- Current Rating
- 200 mA per channel
LED Indicators
- System
- Power x 1
- LAN
- 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage
- 12/24 VDC
- Power Connector
- Screw-fastened Euroblock terminal
- Power Consumption
- 62.4 W
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP20
- Dimensions
- 217 x 136.5 x 44.5 mm (8.55 x 5.38 x 1.75 in)
- Weight
- 1,600 g (3.52 lb)
- Installation
- Wall mounting (standard) DIN-rail mounting (with optional kit)
Environmental Limits
- Operating Temperature
- -30 to 70°C (-22 to 158°F)
- Storage Temperature
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Safety
- IEC 62368-1 UL 62368-1 EN 62368-1
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-6 IEC 60068-2-64
- Package Drop Test
- ISTA 1A
- Package Vibration Test
- ISTA 1A
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Reliability
- Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger
- Built-in WDT
MTBF
- Time
- 1,515,150 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
