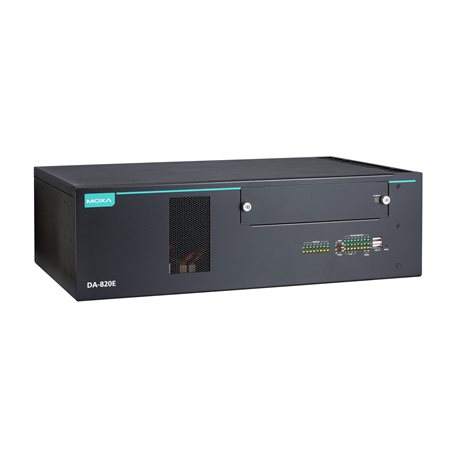

DA-820E Series
IEC 61850-3 3U rackmount computers with 13th Gen Intel® Core™ processor, hot-swappable power module, -40 to 70°C operating temperature
Features and Benefits
- IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
- EN 50121-4 compliant for railway wayside applications
- 13th Gen Intel® Core™ processor
- 4 SSD slots with Intel® RST RAID 0/1 support for SSD slot 1 and 2
- Up to 64 GB RAM (two built-in SODIMM DDR4 memory slots)
- PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
- Security options such as TPM 2.0, UEFI Secure Boot and physical security
- 1 PCIe x8 (4-lane) and 3 PCIe x1 for expansion modules
- Redundant power supplies (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design
Certifications
- Iec61850 3 Ieee1613 Black
- En50121 4
- CE
- UL REC
Introduction
The DA-820E Series is a high-performance fanless 3U rackmount industrial computer powered by 13th Gen Intel® Core™ i3/i5/i7 processors, offering exceptional computing capabilities. It features a versatile I/O design, including 3 display ports (2 HDMI and 1 VGA), 6 USB ports, 4 Gigabit Ethernet ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, 2 DO ports, 4 standard PCIe expansion slots, and 1 proprietary expansion slot. Additionally, it is equipped with 4 hot-swappable 2.5” SSD slots, supporting Intel® RST RAID 0/1 functionality on SSD slots 1 and 2 for enhanced storage performance and reliability. Engineered specifically for substation applications, the DA-820E complies with IEC 61850-3, IEEE 1613, and IEC 60255 standards, guaranteeing ruggedness, reliability, and seamless integration with Intelligent Electronic Devices (IEDs) in demanding substation automation systems. Leveraging its 13th Gen Intel® processor, the DA-820E delivers the high computing power required for modern, complex software applications, such as virtualization, in addition to traditional OT SCADA functionalities.
Models in this series (16)
| — | DA-820E-C3-HH-T | DA-820E-C3-H-T | DA-820E-C5-HH-T | DA-820E-C5-H-T |
| CPU | Intel® Core™ i3-1320PE | Intel® Core™ i3-1320PE | Intel® Core™ i5-1340PE | Intel® Core™ i5-1340PE |
| Power Modules Included | 2 x DA-PWR-150-HV | 1 x DA-PWR-150-HV | 2 x DA-PWR-150-HV | 1 x DA-PWR-150-HV |
| Operating Temperature | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | DA-820E-C7-H-T | DA-820E-C7-HH-T | DA-820E-C3-L-T | DA-820E-C3-LL-T |
| CPU | Intel® Core™ i7-1370PE | Intel® Core™ i7-1370PE | Intel® Core™ i3-1320PE | Intel® Core™ i3-1320PE |
| Power Modules Included | 1 x DA-PWR-150-HV | 2 x DA-PWR-150-HV | 1 x DA-PWR-120-LV | 2 x DA-PWR-120-LV |
| Operating Temperature | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | DA-820E-C5-L-T | DA-820E-C5-LL-T | DA-820E-C7-L-T | DA-820E-C7-LL-T |
| CPU | Intel® Core™ i5-1340PE | Intel® Core™ i5-1340PE | Intel® Core™ i7-1370PE | Intel® Core™ i7-1370PE |
| Power Modules Included | 1 x DA-PWR-120-LV | 2 x DA-PWR-120-LV | 1 x DA-PWR-120-LV | 2 x DA-PWR-120-LV |
| Operating Temperature | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for DA-820E-C3-H-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Intel® Core™ i3-1320PE Intel® Core™ i5-1340PE Intel® Core™ i7-1370PE
- System Memory Slot
- SODIMM DDR4 slots x 2
- DRAM
- 64 GB max. (SODIMM x 2, each supporting 3200 MHz and 32 GB max. per module)
- Graphics Controller
- Intel® Core™ i3-1320PE: Intel® UHD Graphics Intel® Core™ i5-1340PE: Intel® Iris® Xe Graphics eligible Intel® Core™ i7-1370PE: Intel® Iris® Xe Graphics eligible
- Storage Slot
- 2.5-inch HDD/SSD slots x 4 M.2 M-key 2280 slot x 1
- Supported OS
- Windows 10 IoT Enterprise LTSC 2021 Windows 11 IoT Enterprise LTSC 2024 Windows Server 2022 Ubuntu 22.04.3 LTS Debian 12 RHEL 9.4
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports
- RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- Digital Input
- DIs x 6
- Digital Output
- DOs x 2
- USB 2.0
- USB 2.0 hosts x 3, type-A connectors 2 ports on the front panel, 1 port inside the computer for USB dongle-based security
- USB 3.0
- USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panel
- Expansion Slots
- PCIe x8 (4-lane) slot x 1 PCIe x1 slots x 3 Proprietary slot x 1
- Video Output
- HDMI x 2, HDMI connector (type A) (up to 3840 x 2160 resolution at 60Hz) VGA x 1, 15-pin D-sub connector (female) (up to 1920 x 1200 resolution at 60 Hz)
- TPM
- TPM v2.0
- Secure Boot
- UEFI
LED Indicators
- System
- Power x 1 Storage x 1 Power failure detection x 2 Programmable x 8
- Serial
- 2 per port (Tx, Rx)
- LAN
- 8 per port (10/100/1000 Mbps)
Serial Interface
- Baudrate
- 300 bps to 115.2 kbps
- Connector
- DB9 male
- Isolation
- 2 kV
- Serial Standards
- RS-232/422/485
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Digital Input Channels
- DIs x 6
- Connector
- Screw-fastened Euroblock terminal
- I/O Mode
- DI
- Isolation
- 3k VDC
- Sensor Type
- Dry contact Wet contact (NPN)
- Dry Contact
- Logic 0: Close to GND Logic 1: Open
- Wet Contact (COM to DI)
- Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Digital Output Channels
- DOs x 2
- Connector
- Screw-fastened Euroblock terminal
- Current Rating
- 200 mA per channel
- I/O Type
- Sink
- Voltage
- 0 to 30 VDC
- Isolation
- 3k VDC
Power Parameters
- Input Current
- 100 to 240 VAC, 50/60 Hz, 1.75 to 0.66 A (max) 100 to 240 VDC, 1.65 to 0.66 A (max) 48 VDC, 3.12 A
- Input Voltage
- 100 to 240 VAC 100 to 240 VDC 48 VDC
- Power Consumption
- DA-PWR-150-HV: 140 W (max.) DA-PWR-120-LV: 130 W (max.)
- Power Button
- Reset button (front panel) ON/OFF (rear panel)
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP30
- Dimensions (without ears)
- 440 x 301 x 132.55 mm (17.32 x 11.85 x 5.22 in)
- Weight
- 11,860 g (26.15 lb)
- Installation
- 19-inch rack mounting
Environmental Limits
- Operating Temperature
- -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 61000-6-2/-6-4 EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m IEC 61000-4-11
- Power Substation
- IEC 61850-3 IEEE 1613
- Protection Relay
- IEC 60255
- Safety
- IEC 62368-1 UL 62368-1
- Shock
- IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 293,786 hrs
- Standards
- Telcordia Standard SR-332
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
