DRP-C100 Series
DIN-rail computers with Tiger Lake 11th Gen Intel® Core™ processor base model and high-interface models
Features and Benefits
- DIN-rail mountable computers with fanless design
- Intel® Celeron® or Intel® Core™ i5, or i7 processor
- Rich interface options for up to 8 serial and 10 LAN ports
- Compact size to fit most field applications
- -30 to 60°C operating temperature range
- DNV, CID2, ATEX, and IECEx certified
Certifications
- DNV
- UL Listed
- Iecex
- ATEX
Introduction

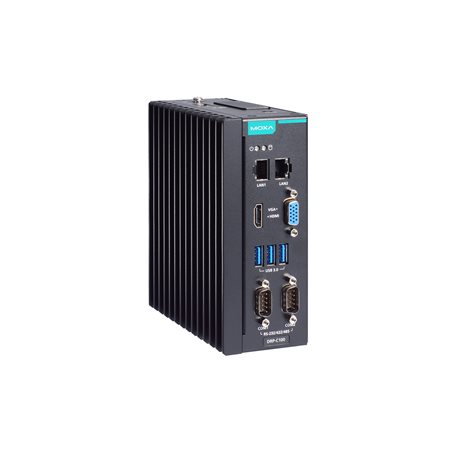

The DRP-C100 Series DIN-rail mountable computers are powered by an Intel® Celeron®, or Intel® Core™ i5 or i7processor. The computers come with a rich set of interface options including up to 8 software-selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet ports. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A unique battery-fastener cover secures the battery in place and ensures stability in all operating environments while a trap-door design for the battery slot enables easy battery swapping without having to remove the cover. The DRP-C100 compact computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The DRP-C100 Series is an intelligent, reliable, durable, and versatile yet user-friendly computing solution that fulfills both OT and IT requirements of industrial environments.
Models in this series (15)
| — | DRP-C100-C1-T | DRP-C100-C1-T-Win10 | DRP-C100-C1-8L-T | DRP-C100-C1-6C-T |
| CPU | Intel® Celeron® 6305E | Intel® Celeron® 6305E | Intel® Celeron® 6305E | Intel® Celeron® 6305E |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | Win 10 LTSC 64 GB CFast | – | – |
| LAN/Serial | 2/2 | 2/2 | 10/2 | 2/8 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | DRP-C100-C1-2L4C-T | DRP-C100-C5-T | DRP-C100-C5-T-Win10 | DRP-C100-C5-8L-T |
| CPU | Intel® Celeron® 6305E | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | – | Win 10 LTSC 64 GB Cfast | – |
| LAN/Serial | 4/6 | 2/2 | 2/2 | 10/2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | DRP-C100-C5-6C-T | DRP-C100-C5-2L4C-T | DRP-C100-C7-T | DRP-C100-C7-T-Win10 |
| CPU | Intel® Core™ i5-1145G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i7-1185G7E | Intel® Core™ i7-1185G7E |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD |
| OS Preinstalled | – | – | – | Win 10 LTSC 64 GB Cfast |
| LAN/Serial | 2/8 | 4/6 | 2/2 | 2/2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | 12/24 VDC |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | DRP-C100-C7-8L-T | DRP-C100-C7-6C-T | DRP-C100-C7-2L4C-T | — |
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i7-1185G7E | Intel® Core™ i7-1185G7E | |
| Memory | 8 GB | 8 GB | 8 GB | |
| Storage Slots | 1 x CFast 1 x SD | 1 x CFast 1 x SD | 1 x CFast 1 x SD | |
| OS Preinstalled | – | – | – | |
| LAN/Serial | 10/2 | 2/8 | 4/6 | |
| USB 3.0 | 3 | 3 | 3 | |
| Video Outputs | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | 1 x VGA 1 x HDMI | |
| Power Input | 12/24 VDC | 12/24 VDC | 12/24 VDC | |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for DRP-C100-C1-2L4C-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- DRP-C100-C1 models: Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz) DRP-C100-C5 models: Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz) DRP-C100-C7 models: Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)
- System Memory Slot
- SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed
- 8 GB DDR4
- Storage Slot
- CFast slot x 1 (SATAIII interface) SD slots x 1, SD 3.0 interface (SDHC/SDXC)
- Storage Pre-installed
- DRP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10 models: 64 GB CFast card
- Supported OS
- Windows images and drivers supported: - Windows 11 Professional 64-bit - Windows 11 IoT Enterprise LTSC 2024 64-bit - Windows 10 IoT Enterprise LTSC 2021 64-bit Linux drivers supported: - Debian 12 (kernel 6.1) - Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14)
- Graphics Controller
- Intel® UHD Graphics
Computer Interface
- Ethernet Ports
- DRP-C100-C1-8L-T/C5-8L-T/C7-8L-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 10 DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 All other models: Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports

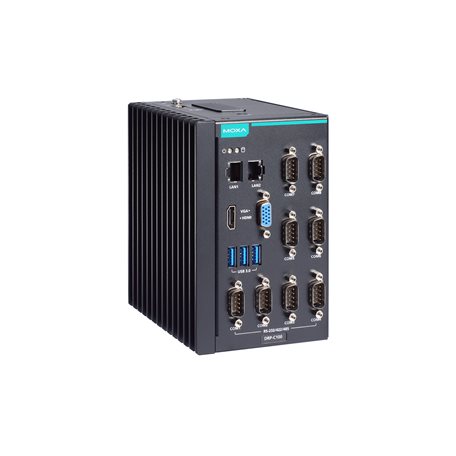

- DRP-C100-C1-6C-T/C5-6C-T/C7-6C-T: RS-232/422/485 ports x 8, software selectable (DB9 male) x 8 DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T: RS-232/422/485 ports x 6, software selectable (DB9 male) x 6 All other models: RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
- USB 3.0
- USB 3.0 hosts x 3, type-A connectors
- Video Output
- HDMI 2.0b x 1, (type A connector) VGA x 1, 15-pin D-sub connector (female)
- Buttons
- Reset button Power button
- TPM
- TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
LED Indicators
- System
- Power x 1 Storage x 1
- LAN
- 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage
- 12/24 VDC
- Power Consumption
- 90 W
- Power Connector
- Screw-fastened Euroblock terminal
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP20
- Dimensions
- DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10: 60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in) All other models: 94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)
- Weight
- DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10: 1,213 g (2.67 lb) All other models: 1.612 g (3.55 lb)
- Installation
- DIN-rail mounting
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Environmental Limits
- Operating Temperature
- -30 to 60°C (-22 to 140°F)
- Storage Temperature
- -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A BSMI
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz
- Safety
- UL 62368-1 EN 62368-1 IEC 62368-1 BSMI
- Maritime
- DNV-CG-0339 IEC 60945 IACS E10
- Hazardous Locations
- ATEX IECEx Class I Division 2
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64 IEC 60068-2-6 DNV-CG-0339 Class A IEC 60945
- Package Drop Test
- ISTA 1A
- Package Vibration Test
- ISTA 1A
- Environmental Testing
- IEC 60068-2-1, DNV-CG-0339 IEC 60068-2-1, IEC 60945 IEC 60068-2-2, DNV-CG-0339 IEC 60068-2-2, IEC 60945
Reliability
- Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger
- Built-in WDT
MTBF
- Time
- 1,842,390 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
