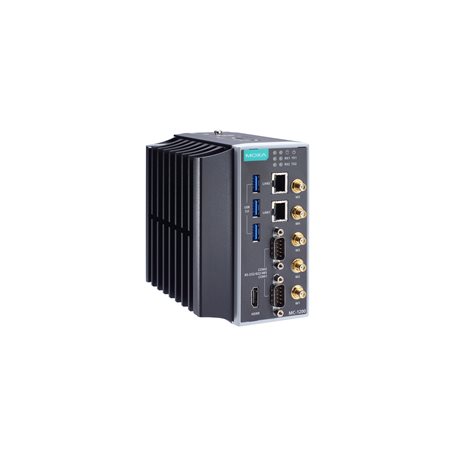

MC-1200 Series
Ultra-compact rugged edge computers with Intel® Core™ i7 processor, designed for IIoT, AI, and machine learning applications
Features and Benefits
- 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
- 7th Gen Intel® Core™ processor (Kaby Lake U)
- 2 built-in DDR4 memory slots; total capacity up to 32 GB
- Built-in TPM 2.0 module
- Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports
Certifications
- ATEX
- UL Listed
- Iecex
Introduction
The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module. Additional value and convenience is provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules. With UL Class 1 Division 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances. The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.
Models in this series (8)
| — | MC-1220-KL7-T-S | MC-1220-KL5-T-S | MC-1220-KL1-T-S | MC-1220-KL5-T |
| CPU | Intel® Core™ i7-7600U | Intel® Core™ i5-7300U | Intel® Celeron® 3965U | Intel® Core™ i5-7300U |
| Memory | 8 GB | 8 GB | 8 GB | 8 GB |
| TPM 2.0 | ✓ | ✓ | ✓ | – |
| Optional OS Storage (mSATA) | 16 GB | 16 GB | 16 GB | 16 GB |
| LAN/Serial Ports | 2/2 | 2/2 | 2/2 | 2/2 |
| SSD/HDD Slots | 1 | 1 | 1 | 1 |
| USB 3.0 Ports | 3 | 3 | 3 | 3 |
| Interface Expansion | 3 x mPCIe | 3 x mPCIe | 3 x mPCIe | 3 x mPCIe |
| Operating Temp | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for MC-1220-KL1-T-S. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
- Storage Slot
- mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
- System Memory Slot
- SODIMM DDR4 slot x 2, up to 32 GB max.
- Supported OS
- Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS) Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
- Graphics Controller
- Intel® HD Graphics 610
Computer Interface
- Video Input
- HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
- USB 3.0
- USB 3.0 hosts x 3, type-A connectors
- Buttons
- Reset button
Serial Interface
- Connector
- DB9 male
- Serial Standards
- RS-232/422/485 (software selectable)
- Serial Ports
- 2 x RS-232/422/485
- Flow Control
- RTS/CTS, XON/XOFF
- Baudrate
- 50 bps to 115.2 kbps
- ESD Protection
- 4 kV contact, 8 kV air
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
- 10/100/1000BaseT(X) Ports (RJ45 connector)
- 2
LED Indicators
- System
- Power x 1
- Serial
- 2 per port (Tx, Rx)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
Physical Characteristics
- Installation
- Wall mounting (with optional kit), DIN-rail mounting
- Housing
- Metal
- Dimensions
- 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
- Weight
- Product only: 1.40 kg (0.63 lb)
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Power Parameters
- Power Button
- ON/OFF (rear panel) Reset button
- Input Voltage
- 9 to 36 VDC
- Input Current
- 8 A @ 9 VDC, 2 A @ 36 VDC
- Power Consumption
- 72 W
Environmental Limits
- Operating Temperature
- -40 to 70°C (-40 to 158°F)
- Storage Temperature
- -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
- Shock
- IEC 60068-2-27
Standards and Certifications
- Safety
- UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
- EMC
- EN 55032/35, CISPR 32, FCC Part 15B Class A
- Hazardous Locations
- ATEX Zone 2, IECEx Zone 2, Class I Division 2
Reliability
- Alert Tools
- Built-in RTC (real-time clock) with lithium battery backup
MTBF
- Time
- 510,913 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
