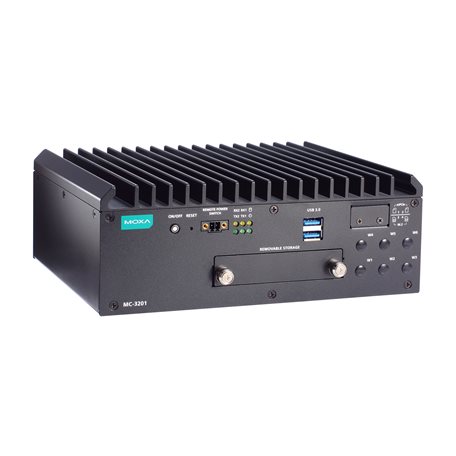

MC-3201 Series
Compact computers with 11th Gen Intel® Core™ processor, designed for IIoT, AI, and marine applications, -20 to 55°C operating temperature
Features and Benefits
- 11th Gen Intel® Core™ processor (Tiger Lake U)
- 2 built-in DDR4 memory slots; total capacity up to 32 GB
- Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
- Built-in TPM 2.0 module
- Complies with DNV, IEC-60945, and IACS E10 standards
Certifications
- DNV
- CE
- FCC
- UL Listed
Introduction
The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module. Compliance with the DNV, IEC-60945, and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.
Models in this series (8)
| — | MC-3201-TGL7-S-S | MC-3201-TGL5-S-S | MC-3201-TGL3-S-S | MC-3201-TGL1-S-S |
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i3-1115G4E | Intel® Celeron® 6305E |
| RAM | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x 2.5" SSD | 1 x 2.5" SSD | 1 x 2.5" SSD | 1 x 2.5" SSD |
| LAN/Serial Ports | 4/2 | 4/2 | 4/2 | 4/2 |
| USB 3.0/2.0 Ports | 2/4 | 2/4 | 2/4 | 2/4 |
| Video Ouputs | 2 x DisplayPort | 2 x DisplayPort | 2 x DisplayPort | 2 x DisplayPort |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | MC-3201-TGL7-M-S | MC-3201-TGL5-M-S | MC-3201-TGL3-M-S | MC-3201-TGL1-M-S |
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i3-1115G4E | Intel® Celeron® 6305E |
| RAM | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 1 x 2.5" SSD | 1 x 2.5" SSD | 1 x 2.5" SSD | 1 x 2.5" SSD |
| LAN/Serial Ports | 4/2 | 4/2 | 4/2 | 4/2 |
| USB 3.0/2.0 Ports | 2/4 | 2/4 | 2/4 | 2/4 |
| Video Ouputs | 2 x DisplayPort | 2 x DisplayPort | 2 x DisplayPort | 2 x DisplayPort |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for MC-3201-TGL1-M-S. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Intel® Celeron® 6305E processor (4M Cache, up to 1.8 GHz)
- Graphics Controller
- Intel® Iris® Xe Graphics
- System Memory Pre-installed
- 8 GB DDR4
- System Memory Slot
- SODIMM DDR4 2133 slots x 2, up to 32 GB max.
- Supported OS
- Windows 10 IoT Enterprise LTSC 2021 Driver support: Linux Debian 11 (kernel 5.10), 64-bit
- Storage Slot
- 2.5-inch HDD/SSD slots x 1
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports
- RS-232/422/485 ports x 2, software selectable (DB9 male)
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- USB 3.0
- USB 3.0 hosts x 2, type-A connectors
- USB 2.0
- USB 2.0 hosts x 4, type-A connectors
- Video Output
- DisplayPort x 2 up to 3840 x 2160 resolution at 60 Hz
- Audio Input/Output
- Line in x 1, Line out x 1, 3.5 mm phone jack
- Buttons
- Reset button Power button
- TPM
- TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
- 10/100/1000BaseT(X) Ports (RJ45 connector)
- 4
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- Data Bits
- 5, 6, 7, 8
- Flow Control
- RTS/CTS, XON/XOFF
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
- ESD Protection
- 4 kV contact, 8 kV air
Serial Signals
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-485-2w
- Data+, Data-, GND
LED Indicators
- System
- Power x 1 Storage x 1
- Serial
- 2 per port (Tx, Rx)
- LAN
- 2 per port (10/100/1000 Mbps)
Physical Characteristics
- Dimensions
- 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)
- Weight
- 3,000 g (6.61 lb)
- Housing
- Metal
- Installation
- Wall mounting
Power Parameters
- Input Voltage
- 24 VDC
Environmental Limits
- Operating Temperature
- -20 to 55°C (-4 to 131°F)
- Storage Temperature
- -30 to 60°C (-22 to 140°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Safety
- UL 62368-1 EN 62368-1 IEC 62368-1 IEC 60950-1
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64
- Maritime
- IEC 60945, IACS E10
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 323,270 hrs
- Standards
- Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
