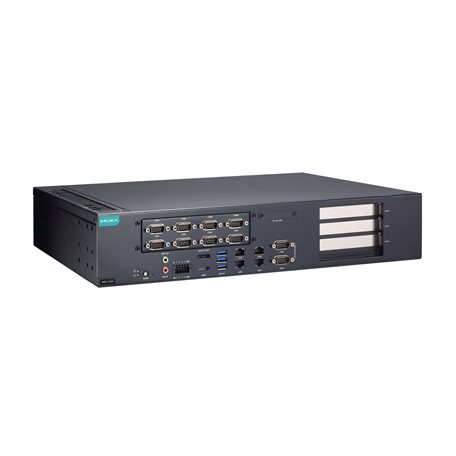

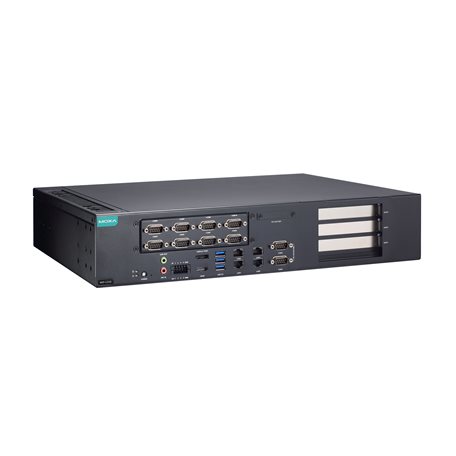

RKP-C220 Series
2U rackmount computers with Raptor Lake-S 13th Gen Intel® Core™ processor base model and rich interface models
Features and Benefits
- 13th Gen Intel® Core™ Raptor Lake-S processor and Intel® Q670E chipset
- 2U rackmount computers with fanless design
- Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
- 2 SODIMM sockets support up to 64 GB
- 3 PCIe slots for expansion modules: x16 (with GPU support), x8 (4-lane), and x1 PCIe slots
- Rich set of interfaces: Up to 8 LAN ports, up to 10 serial ports, and 2 CAN ports
- 2 lockable 2.5" SATA SSD slots and 3 extendable M.2 M key SSD slots for supporting 2 sets of Intel® RST RAID 0/1
- -30 to 60°C operating temperature range
Certifications
- UL Listed
- FCC
- CE
- BSMI
Introduction
The RKP-C220 Series rugged fanless rackmount computers powered by a 13th Gen Intel® Core™ i3, i5, i7, or i9 processor with up to 24 cores and 32 threads, and a rich set of interface options can easily extend the potential of your industrial applications. The computer models come with a rich set of interfaces including up to 8 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports (Moxa in-house IC design), up to 2 CAN ports, and 4 DIs and 4 DOs. Expansion modules can be installed via 3 PCIe slots, including a x16 slot that supports full-length discrete GPU cards for AI-accelerated performance, a x8 (4-lane) slot, and a x1 slot. Two lockable 2.5” SSD storage slots and three M.2 M key SSD extension slots support two sets of Intel® RST RAID 0/1. All interfaces are located on one side of the product for convenient access and wire stripping while an external RTC battery slot simplifies battery replacement. A 2U standard form factor with a rackmount chassis, fanless design, a wide temperature range of -30 to 60°C, an additional fan module to increase performance, and a built-in TPM 2.0 module, make the computers reliable, durable, versatile yet user-friendly industrial platforms in harsh operating environments. The RKP-C220 Series is an intelligent computing platform that is a perfect fit for your industrial applications.
Models in this series (16)
| — | RKP-C220-C3-T | RKP-C220-C3-4L-T | RKP-C220-C3-8C-T | RKP-C220-C3-2CB6C-T |
| CPU | Intel® Core™ i3-13100TE | Intel® Core™ i3-13100TE | Intel® Core™ i3-13100TE | Intel® Core™ i3-13100TE |
| Memory (preinstalled) | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 |
| LAN/Serial | 4/2 | 8/2 | 4/10 | 4/8 |
| CAN Ports | – | – | – | 2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Power Input | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| — | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag |
| — | RKP-C220-C5-T | RKP-C220-C5-4L-T | RKP-C220-C5-8C-T | RKP-C220-C5-2CB6C-T |
| CPU | Intel® Core™ i5-13500TE | Intel® Core™ i5-13500TE | Intel® Core™ i5-13500TE | Intel® Core™ i5-13500TE |
| Memory (preinstalled) | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 |
| LAN/Serial | 4/2 | 8/2 | 4/10 | 4/8 |
| CAN Ports | – | – | – | 2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Power Input | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| — | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag |
| — | RKP-C220-C7-T | RKP-C220-C7-4L-T | RKP-C220-C7-8C-T | RKP-C220-C7-2CB6C-T |
| CPU | Intel® Core™ i7-13700TE | Intel® Core™ i7-13700TE | Intel® Core™ i7-13700TE | Intel® Core™ i7-13700TE |
| Memory (preinstalled) | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 |
| LAN/Serial | 4/2 | 8/2 | 4/10 | 4/8 |
| CAN Ports | – | – | – | 2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Power Input | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| — | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag |
| — | RKP-C220-C9-T | RKP-C220-C9-4L-T | RKP-C220-C9-8C-T | RKP-C220-C9-2CB6C-T |
| CPU | Intel® Core™ i9-13900TE | Intel® Core™ i9-13900TE | Intel® Core™ i9-13900TE | Intel® Core™ i9-13900TE |
| Memory (preinstalled) | 8 GB | 8 GB | 8 GB | 8 GB |
| Storage Slots | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 | 2 x 2.5” SSD 1 x M.2 M Key 2280 2 X M.2 M Key 2242 |
| LAN/Serial | 4/2 | 8/2 | 4/10 | 4/8 |
| CAN Ports | – | – | – | 2 |
| USB 3.0 | 3 | 3 | 3 | 3 |
| Power Input | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| — | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag | Add to Quote View Bag |
Specifications
Shown for RKP-C220-C3-2CB6C-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- RKP-C220-C9 models: Intel® Core™ i9-13900TE RKP-C220-C7 models: Intel® Core™ i7-13700TE RKP-C220-C5 models: Intel® Core™ i5-13500TE RKP-C220-C3 models: Intel® Core™ i3-13100TE
- Chipset
- Intel® Q670E
- System Memory Slot
- SODIMM DDR4 slots x 2, up to 64 GB max.
- System Memory Pre-installed
- 8 GB DDR4
- Storage Slot
- 2.5-inch SSD slot x 2 (SATA III interface, RAID 0/1 support) M.2 M Key 2280 socket x 1 (PCIe interface, NVMe support) M.2 M Key 2242 socket x 2 (PCIe interface, NVMe support, RAID 0/1 support)
- Supported OS
- OS images: - Windows 10 IoT Enterprise LTSC 2021 64-bit - Windows 11 IoT Enterprise LTSC 2024 64–bit - Windows 11 Professional 64-bit Windows drivers supported: - Windows 10 IoT Enterprise LTSC 2021 64-bit - Windows 11 IoT Enterprise LTSC 2024 64–bit - Windows 11 Professional 64-bit - Windows Server 2022 Linux driver supported: - Debian 12 (kernel 6.10) - Ubuntu 22.04 LTS/ HWE (kernel 5.15) - RHEL 9.0 (kernel 5.14)
- Graphics Controller
- i9. i7, and i5 processor: Intel® UHD Graphics 770 i3 processor: Intel® UHD Graphics 730
Computer Interface
- Ethernet Ports
- RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2 RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6 Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
- Serial Channels
- RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T: RS-232/RS-422/RS-485-2W/RS-485-4W ports x 2, software selectable (DB9 male) RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: RS-232/RS-422/RS-485-2W/RS-485-4W ports x 10, software selectable (DB9 male) RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: RS-232/RS-422/RS-485-2W/RS-485-4W ports x 8, software selectable (DB9 male)
- CAN Ports
- RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: CAN Ports x 2
- Expansion Slots
- PCIe x16 (Gen 4) slot x 1 PCIe x8 (4-lane, Gen 4) slot x 1 PCIe x1 (Gen 4) slot x 1
- USB 3.0
- External: USB 3.0 hosts x 3, type-A connector Internal: USB 3.0 hosts x 1, type-A connector
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- Audio Input/Output
- Mic-in x 1, 3.5 mm audio jack Line-out x 1, 3.5 mm audio jack
- Video Output
- HDMI 2.0b x 1, (type-A connector) DisplayPort 1.2 x 1
- Buttons
- Reset button Power button
- TPM
- TPM v2.0
Ethernet Interface
- Magnetic Isolation Protection
- 1.5 kV (built-in)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- Data Bits
- 5, 6, 7, 8
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
- Flow Control
- RTS/CTS, XON/XOFF
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector
- Spring-type Euroblock terminal
- Sensor Type
- Dry contact
- Dry Contact
- Logic 0: Short to GND Logic 1: Open
Digital Outputs
- Connector
- Spring-type Euroblock terminal
- I/O Type
- Sink
- Current Rating
- 200 mA per channel
- Voltage
- 0 to 24 VDC
CAN Interface
- Connector
- DB9 male
- Protocols
- CAN 2.0A CAN 2.0B
- Signals
- CAN_H, CAN_L, CAN_GND
- Isolation
- 2 kV (built-in)
Power Parameters
- Input Voltage
- 100 to 240 VAC
- Power Consumption
- 90 W (without graphics card)
- Power Connector
- IEC 60320 C16 inlet
Physical Characteristics
- Housing
- Metal
- IP Rating
- IP20
- Dimensions
- 440 x 360 x 88.1 mm (17.32 x 14.17 x 3.47 in)
- Weight
- RKP-C220-C9-T/C7-T/C5-T/C3-T: 8,913 g (19.65 Ib) RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: 8,914 g (19.65 Ib) RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: 9,196 g (20.27 Ib) RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T models: 9,062 g (19.98 Ib)
- Installation
- Rack mounting (standard 2U)
Environmental Limits
- Operating Temperature
- -30 to 60°C (-22 to 140°F) (without graphics card; refer to the graphics card operating temperature specification if applicable)
- Storage Temperature
- -40 to 70°C (-40 to 158°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A BSMI
- EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: Line-to-PE: 2 kV; Line-to-Line: 1 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
- Safety
- UL 62368-1 (CB) BSMI
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64
- Package Drop Test
- ISTA 1A
- Package Vibration Test
- ISTA 1A
Declaration
- Green Product
- RoHS, CRoHS, WEEE
Reliability
- Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
- Automatic Reboot Trigger
- Built-in WDT
MTBF
- Time
- RKP-C220-C9-T/C7-T/C5-T/C3-T: 1,168,494 hrs RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: 993,182 hrs RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: 1,101,194 hrs RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: 995,157 hrs hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
