V2201 Series
Intel® Atom® E3800 DIN-rail computer with 2 Mini PCIe expansion slots for wireless
Features and Benefits
- Intel Atom® E3800 Series processor with three performance options
- Dual Mini PCIe sockets for wireless modules
- -40 to 85°C wide operating temperature
- Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
- EN 61000-6-2 and EN 61000-6-4 certification and meets the EMC standard for heavy industry
- Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
Certifications
- UL Listed
- CE
- FCC
Introduction
The V2201 Series ultra-compact x86 embedded computer is based on the Intel® Atom™ E3800 Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. Wireless modules must be purchased separately. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 85°C (-40 to 70°C with a special purpose Moxa wireless module installed).
Models in this series (9)
| — | V2201-E1-T | V2201-E2-T | V2201-E4-T | V2201-E1-W-T |
| CPU | Intel Atom® E3815 | Intel Atom® E3826 | Intel Atom® E3845 | Intel Atom® E3815 |
| Memory (Default) | 4 GB | 4 GB | 4 GB | 4 GB |
| mSATA (Default) | 16 GB | 16 GB | 16 GB | 16 GB |
| SD Card Slots | 1 (optional) | 1 (optional) | 1 (optional) | 1 (optional) |
| Mini SIM Slot | 1 | 1 | 1 | 1 |
| Antenna Connectors | – | – | – | 5 |
| Default Mounting | Wall-mounting | Wall-mounting | Wall-mounting | Wall-mounting |
| Operating Temp. | -40 to 85°C | -40 to 85°C | -40 to 70°C | -40 to 85°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |

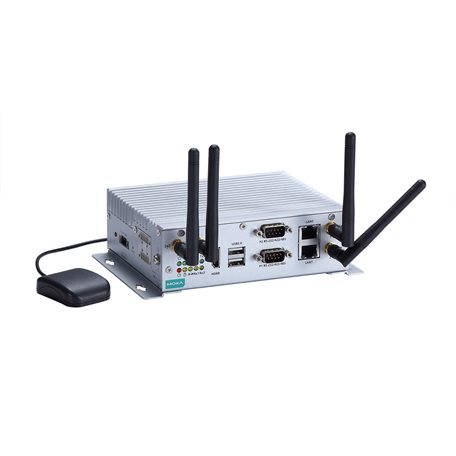

| — | V2201-E2-W-T | V2201-E4-W-T | V2201-E1-T-LX | V2201-E4-W-T-LX |
| CPU | Intel Atom® E3826 | Intel Atom® E3845 | Intel Atom® E3815 | Intel Atom® E3845 |
| Memory (Default) | 4 GB | 4 GB | 2 GB | 4 GB |
| mSATA (Default) | 16 GB | 16 GB | 16 GB | 32 GB |
| SD Card Slots | 1 (optional) | 1 (optional) | 1 (optional) | 16 GB |
| Mini SIM Slot | 1 | 1 | 1 | 1 |
| Antenna Connectors | 5 | 5 | – | 5 |
| Default Mounting | Wall-mounting | Wall-mounting | Wall-mounting | DIN-rail mounting |
| Operating Temp. | -40 to 85°C | -40 to 70°C | -40 to 85°C | -40 to 70°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for V2201-E1-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Intel Atom® Processor E3815 (512K Cache, 1.46 GHz)
- System Memory Pre-installed
- 4 GB DDR3L
- System Memory Slot
- SODIMM DDR3/DDR3L slot x 1
- Supported OS
- Windows Embedded Standard 7 (WS7E) 64-bit Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit Windows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bit Windows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bit Linux Debian 9 OS image (Kernel 4.9) Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- Storage Slot
- mSATA slots x 1 SD 3.0 (SDHC/SDXC) socket x 1
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
- Serial Ports
- RS-232/422/485 ports x 2, software selectable (DB9 male)
- USB 2.0
- USB 2.0 hosts x 2, type-A connectors
- USB 3.0
- USB 3.0 hosts x 1, type-A connectors
- Digital Input
- DIs x 4
- Digital Output
- DOs x 4
- Expansion Slots
- mPCIe slots x 2
- Video Output
- HDMI x 1, HDMI connector (type A)
- Wi-Fi Antenna Connector
- RP-SMA x 2
- Cellular Antenna Connector
- SMA x 2
- Number of SIMs
- 1
- SIM Format
- Mini
- GPS Antenna Connector
- SMA x 1
Digital Inputs
- Isolation
- 3K VDC
- Connector
- Screw-fastened Euroblock terminal
- Dry Contact
- On: short to GND Off: open
- I/O Mode
- DI
- Sensor Type
- Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM)
- On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- Current Rating
- 200 mA per channel
- I/O Type
- Sink
- Voltage
- 24 to 30 VDC
LED Indicators
- System
- SD slots x 1 Power x 1 Storage x 1 Programmable x 1
- Wireless Signal Strength
- Cellular/Wi-Fi x 2
- LAN
- 1 per port (10/100/1000 Mbps)
- Serial
- 2 per port (Tx, Rx)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Flow Control
- RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Isolation
- N/A
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage
- 9 to 36 VDC
- Power Connector
- Terminal block (for DC models)
- Power Consumption (Max.)
- 2000 mA @ 9 VDC
- Power Consumption
- 18 W (max.)
Physical Characteristics
- Housing
- Aluminum
- IP Rating
- IP30
- Dimensions (with ears)
- 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
- Dimensions (without ears)
- 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
- Weight
- 940 g (2.09 lb)
- Installation
- Wall mounting
Environmental Limits
- Operating Temperature
- -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35 EN 61000-6-2/-6-4
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety
- EN 60950-1 UL 508 UL 60950-1
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-64
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 408,275 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
