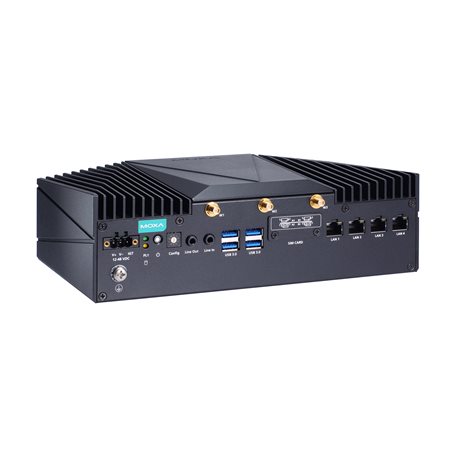

V2403C Series
Intel® 7th Gen Core™/Celeron® Industrial IoT embedded computers with power ignition control, 2 Mini PCIe expansion slots for wireless, SMA connectors
Features and Benefits
- Intel® Celeron®/Intel® Core™ i3/i5/i7 high performance network video recorder for rail-wayside and in-vehicle applications
- Multiple interfaces: Dual display (HDMI, DP), 4 serial ports, 4 GbE ports, 4 DIs, 4 DOs, 4 USB, and 2 Mini PCIe slots for wireless
- Power management with Ignition on/off delay (externally accessible rotary switch)
- E1 Mark, ISO 7637-2, and MIL-STD-810G compliant
- Compliant with EN 50121-4
Certifications
- UL Listed
- CE
- FCC
- En50121 4
Introduction
The V2403C Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 32 GB RAM, one mSATA slot, and two HDD/SSD for storage expansion. The computers are compliant with EN 50121-4, E1 mark, and ISO- 7637-2 standards making them ideal for rail-wayside and in-vehicle (except trains) applications. V2403C computers are equipped with a rich set of interfaces including 4 gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 4 DIs, 4 DOs, and 4 USB 3.0 ports. In addition, they are also provided with 1 DisplayPort output and 1 HDMI output with 4K resolution. Reliable connections and good power management are key to in-vehicle applications. The computers are provided with 2 mPCIe wireless expansion slots and 4 SIM-card slots to establish redundant LTE/Wi-Fi connectivity. In terms of power management, startup and shutdown delay mechanisms help in avoiding system malfunction and damage.
Models in this series (7)
| — | V2403C-KL1-T | V2403C-KL3-T | V2403C-KL5-T | V2403C-KL7-T |
| CPU | Intel® Celeron® 3965U | Intel® Core™ i3-7100U | Intel® Core™ i5-7300U | Intel® Core™ i7-7600U |
| Memory (built-in) | – | – | – | – |
| Optional OS Storage (mSATA) | 1 | 1 | 1 | 1 |
| Optional SSD/HDD | 2 | 2 | 2 | 2 |
| USB Ports | 4 x USB 3.0 (type A) | 4 x USB 3.0 (type A) | 4 x USB 3.0 (type A) | 4 x USB 3.0 (type A) |
| Power Input | 12 to 48 VDC (Terminal Block) | 12 to 48 VDC (Terminal Block) | 12 to 48 VDC (Terminal Block) | 12 to 48 VDC (Terminal Block) |
| Operating Temp. | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| Conformal Coating | – | – | – | – |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for V2403C-KL1-T. Per-model differences are listed in the selection grid above.
Computer
- CPU
- Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
- Storage Slot
- 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
- Supported OS
- Windows 10 Embedded IoT Ent 2019 LTSC 64-bit Windows 10 Embedded IoT Ent 2021 LTSC 64-bit Linux Debian 9 image Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- System Memory Slot
- SODIMM DDR4 slot x 2
- DRAM
- 32 GB max
- Graphics Controller
- Intel® HD Graphics 610
Computer Interface
- Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports
- RS-232/422/485 ports x 4, software selectable (DB9 male)
- Digital Output
- DOs x 4
- Digital Input
- DIs x 4
- USB 3.0
- USB 3.0 hosts x 4, type-A connectors
- Audio Input/Output
- Line in x 1, Line out x 1, 3.5 mm phone jack
- Video Output
- HDMI x 1, HDMI connector (standard) DP x 1, DisplayPort connector (standard)
- Wi-Fi Antenna Connector
- RP-SMA x 3
- Cellular Antenna Connector
- SMA x 2 (optional)
- GPS Antenna Connector
- SMA x 1 (optional)
- Expansion Slots
- mPCIe slots x 2
- SIM Format
- Micro
- Number of SIMs
- 4
Digital Inputs
- Connector
- Screw-fastened Euroblock terminal
- I/O Mode
- DI
- Isolation
- 3k VDC
- Sensor Type
- Wet contact (NPN or PNP) Dry contact
- Dry Contact
- Logic 0: Short to GND Logic 1: Open
- Wet Contact (DI to COM)
- Logic 0: 0 to 3 VDC Logic 1: 10 to 30 VDC
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- Current Rating
- 200 mA per channel
- I/O Type
- Sink
- Voltage
- 0 to 30 VDC
- Isolation
- 3k VDC
LED Indicators
- System
- Power x 1 Storage x 1
- LAN
- 2 per port (10/100/1000 Mbps)
- Serial
- 2 per port (Tx, Rx)
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- ESD
- Contact: 6 kV; Air: 8 kV (level 3)
- Isolation
- 2 kV
- Data Bits
- 5, 6, 7, 8
- Flow Control
- RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Parity
- None, Even, Odd, Space, Mark
- Stop Bits
- 1, 1.5, 2
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage
- 12 to 48 VDC
- Power Connector
- Terminal block
- Power Consumption (Max.)
- 70 W (max.)
Power Ignition Control
- Switch Type
- Rotary (front panel)
- Switch Settings
- Setting 0: IGT function disabled Setting 1: PWR ON delay: 0.5 sec; PWR OFF delay: 30 sec Setting 2: PWR ON delay: 1 sec; PWR OFF delay: 30 sec Setting 3: PWR ON delay: 1 sec; PWR OFF delay: 60 sec Setting 4: PWR ON delay: 2 sec; PWR OFF delay: 60 sec Setting 5: PWR ON delay: 2 sec; PWR OFF delay: 90 sec Setting 6: PWR ON delay: 3 sec; PWR OFF delay: 90 sec Setting 7: PWR ON delay: 3 sec; PWR OFF delay: 150 sec Setting 8: PWR ON delay: 4 sec; PWR OFF delay: 180 sec Setting 9: PWR ON delay: 5 sec; PWR OFF delay: 180 sec
Physical Characteristics
- Housing
- Aluminum
- IP Rating
- IP20
- Dimensions (without ears)
- 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
- Weight
- 2,500 g (5.51 lb)
- Installation
- Wall mounting (standard)
Environmental Limits
- Operating Temperature
- -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety
- EN 62368-1 IEC 62368-1 UL 62368-1
- Railway
- EN 50121-4
- Shock
- IEC 60068-2-27, IEC 61373, MIL-STD-810G
- Vibration
- IEC 60068-2-64, IEC 61373, MIL-STD-810G
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Time
- 464,506 hrs
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
