V3200 Series
11th Gen Intel® Core™ processor railway computers with power isolation, multiple expansion slots for wireless, 2 SSD slots
Features and Benefits
- Intel® Celeron®/Intel® Core™ i3/i5/i7 embedded computer for in-vehicle applications
- Multiple interfaces: Up to 8 GbE, 2 serial, 2 USB, 2 DIs, 2 DOs, 1 mPCIe slot for wireless (Wi-Fi 5 or 4G), and 1 M.2 E key for wireless (Wi-Fi 6)
- Supports dual independent displays (VGA and HDMI with 4K resolution)
- Native TSN support (for models with i7-1185GRE processor)
- Onboard TPM module for enhanced cybersecurity
- Complies with all EN 50155 mandatory test items
- EN 50121-4 compliant
- IEC 61373 certified for shock and vibration resistance
- Multiple OSes including Moxa Industrial Linux with 10-year long-term support
Certifications
- En50121 4
- CE
- En50155
- FCC
Introduction
The V3200 Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 64 GB RAM, one M.2 2280 M key slot, and two 2.5" SSD slots for storage expansion. The computers are compliant with EN 50155 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications. For connecting with onboard and wayside systems and devices, the V3200 computers are equipped with a rich set of interfaces including 4 Gigabit Ethernet ports (default; can go up to 8 ports) with one-pair LAN bypass function to ensure uninterrupted data transmission, 2 RS-232/422/485 serial ports, 2 DIs, 2 DOs, and 2 USB 3.0 ports. The built-in TPM 2.0 module ensures platform integrity and provides hardware-based security as well as protection from tampering. Vehicular applications require reliable connectivity. They also require clear indicators on the device that identify the status of the software. The V3200 computers come with one LTE and 6 SIM-card slots to help establish redundant LTE/Wi-Fi connections and three programmable LEDs that enable monitoring of the runtime status of software.
Models in this series (21)

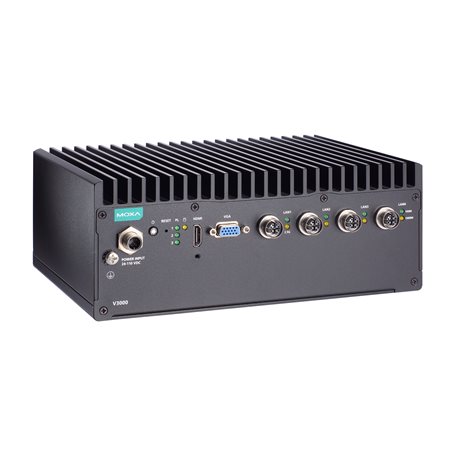

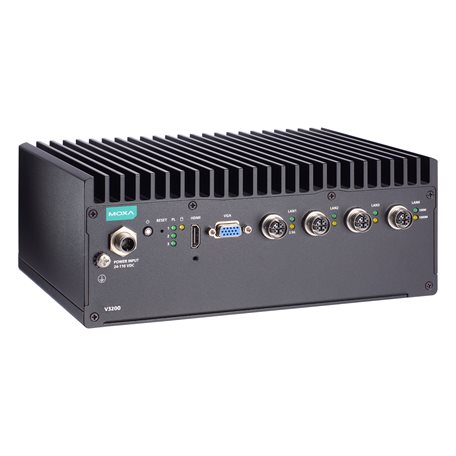

| — | V3210-TL1-4L-T | V3210-TL3-4L-T | V3210-TL3-4L-CT-T | V3210-TL7-4L-T |
| CPU | Celeron 6305E | i3-1115G4E | i3-1115G4E | i7-1185G7E |
| Memory | 16 GB | 16 GB | 16 GB | 16 GB |
| OS Storage (M.2 M Key) | 128 GB | 128 GB | 128 GB | 128 GB |
| 2.5" SSD Slots (2) | Optional | Optional | Optional | Optional |
| GbE Ports | 4 | 4 | 4 | 4 |
| TPM 2.0 | ✓ | ✓ | ✓ | ✓ |
| Native TSN Enhancement | – | – | – | – |
| Power Input | 24-110 VDC | 24-110 VDC | 24-110 VDC | 24-110 VDC |
| Operating Temp. | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| Conformal Coating | – | – | ✓ | – |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |

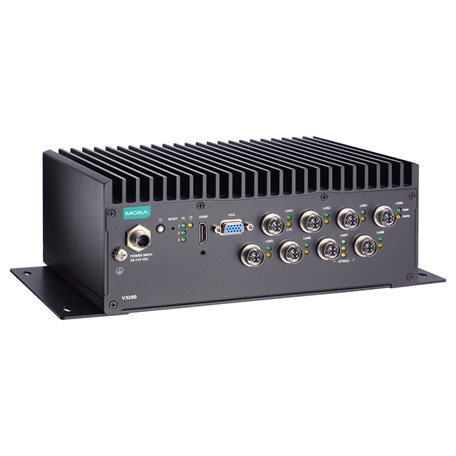

| — | V3210-TL1-8L-CT-T | V3210-TL5-8L-CT-T | V3210-TL7-8L-CT-T | V3210-TL7-8L-TSN-CT-T |
| CPU | Celeron 6305E | i5-1145G7E | i7-1185G7E | i7-1185GRE |
| Memory | 16 GB | 16 GB | 16 GB | 16 GB |
| OS Storage (M.2 M Key) | 128 GB | 128 GB | 128 GB | 128 GB |
| 2.5" SSD Slots (2) | Optional | Optional | Optional | Optional |
| GbE Ports | 8 | 8 | 8 | 8 |
| TPM 2.0 | ✓ | ✓ | ✓ | ✓ |
| Native TSN Enhancement | – | – | – | ✓ |
| Power Input | 24-110 VDC | 24-110 VDC | 24-110 VDC | 24-110 VDC |
| Operating Temp. | -40 to 70°C | -40 to 70°C | -40 to 70°C | -40 to 70°C |
| Conformal Coating | ✓ | ✓ | ✓ | ✓ |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for V3200-LTECat4-GL. Per-model differences are listed in the selection grid above.
Computer
- System Memory Slot
- SODIMM DDR4 slots x 2 (64 GB max)
- System Memory Pre-installed
- 16 GB DDR4
- Storage Slot
- 2.5-inch SSD slots x 2 M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled)
- Supported OS
- Windows 10 IoT Enterprise LTSC 2021 LTSC 64-bit Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL Linux drivers supported: Debian 12 Ubuntu 22.04 LTS (HWE)
Computer Interface
- Ethernet Ports
- Default: 4 ports (2.5 GbE x 1 and GbE x 3), can go up to 8 ports Auto-sensing 1000/2500 Mbps x 1 Auto-sensing 10/100/1000 Mbps x up to 7 LAN1: Intel® Ethernet Network Adapter I225 with Intel® AMT support
- Serial Ports
- RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
- Digital Input
- DIs x 2
- Digital Output
- DOs x 2
- USB 3.0
- USB 3.0 hosts x 2, type-A connectors
- Video Output
- VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)
- Wi-Fi Antenna Connector
- QMA x 8 (optional with accessory kit)
- Expansion Slots
- M.2 B key 3052/3050 slots x 2 M.2 E key slots x 1 (for Wi-Fi 6) mPCIe slots x 1 (for LTE with 2 Micro SIMs, Wi-Fi 5, or I/O expansion)
- SIM Format
- Micro
- Number of SIMs
- 6
- TPM
- TPM v2.0
Digital Inputs
- Connector
- Screw-fastened Euroblock terminal
- Isolation
- 3k VDC
- Sensor Type
- Dry contact Wet contact (NPN)
- Dry Contact
- Logic 0: Close to GND Logic 1: Open
- Wet Contact (COM to DI)
- Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Connector
- Screw-fastened Euroblock terminal
- Current Rating
- 200 mA per channel
- I/O Type
- Sink
- Voltage
- 0 to 30 VDC
- Isolation
- 3k VDC
LED Indicators
- System
- Power x 1 Storage x 1
- LAN
- 2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps) 1 per LAN bypass pair (LAN7 - LAN8)
- Serial
- 2 per port (Tx, Rx)
- User Programmable
- 3
Serial Interface
- Baudrate
- 50 bps to 115.2 kbps
- Connector
- DB9 male
- ESD
- Contact: 6 kV; Air: 8 kV (level 3)
- Isolation
- 2 kV
- Data Bits
- 5, 6, 7, 8
- Stop Bits
- 1, 1.5, 2
- Parity
- None, Even, Odd, Space, Mark
- Flow Control
- RTS/CTS, XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w
- Data+, Data-, GND
- RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage
- 24 to 110 VDC
- Power Connector
- M12 A-coded male connector
- Power Consumption
- 100 W (max.)
Physical Characteristics
- Housing
- Aluminum
- IP Rating
- IP30
- Dimensions (without ears)
- 250 x 96.7 x 180 mm (9.84 x 3.80 x 7.09 in)
- Weight
- Product Only: 3.86 kg (8.51 lb) Product With Package: 5.10 kg (11.24 lb)
- Installation
- Wall mounting
- Protection
- PCB conformal coating Available on request
Environmental Limits
- Operating Temperature
- -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety
- EN 62368-1 IEC 62368-1 UL 62368-1
- Railway Fire Protection
- EN 45545-2:2020
- Railway
- EN 50121-4 EN 50121-3-2 EN 50155:2017
- Shock
- IEC 60068-2-27, IEC 61373
- Vibration
- IEC 60068-2-64, IEC 61373
Declaration
- Green Product
- RoHS, CRoHS, WEEE
MTBF
- Standards
- Telcordia (Bellcore), GB
Warranty
- Warranty Period
- 3 years
- Details
- See www.moxa.com/warranty
