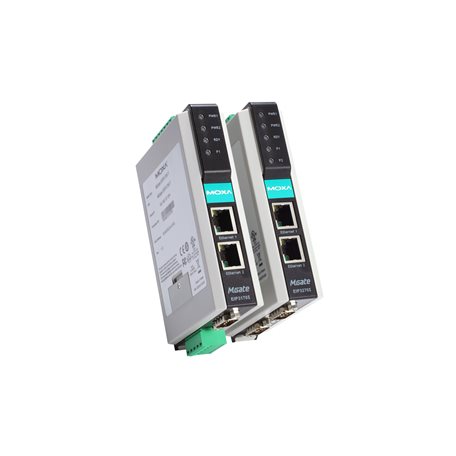

MGate EIP3170/EIP3270 Series
1 and 2-port EtherNet/IP-to-DF1 gateways
Features and Benefits
- PCCC objects for Rockwell Automation networks supported
- Use ProCOM to implement control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
- EtherNet/IP and DF1 traffic monitor for easy troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for easy wiring
- -40 to 75°C wide operating temperature models available
Certifications
- DNV
- UL Listed
- CE
- FCC
Introduction
MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With a number of innovative functions, the MGate™ Series overcomes the difficulties of connecting between legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks.
Models in this series (7)
| — | MGate EIP3170 | MGate EIP3170I | MGate EIP3270 | MGate EIP3270I |
| No. of Serial Ports | 1 | 1 | 2 | 2 |
| Serial Connector | RS-232: DB9 male RS-422/485: Terminal block | RS-232: DB9 male RS-422/485: Terminal block | DB9 male | DB9 male |
| Serial Isolation | – | 2 kV | – | 2 kV |
| Operating Temp. | 0 to 60°C | 0 to 60°C | 0 to 60°C | 0 to 60°C |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
| — | MGate EIP3170-T | MGate EIP3170I-T | MGate EIP3270-T | — |
| No. of Serial Ports | 1 | 1 | 2 | |
| Serial Connector | RS-232: DB9 male RS-422/485: Terminal block | RS-232: DB9 male RS-422/485: Terminal block | DB9 male | |
| Serial Isolation | – | 2 kV | – | |
| Operating Temp. | -40 to 75°C | -40 to 75°C | -40 to 75°C | |
| — | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) | Add to Quote View Bag Buy from distributors (for USA only) |
Specifications
Shown for MGate EIP3170. Per-model differences are listed in the selection grid above.
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector)
- 2 Auto MDI/MDI-X connection
Ethernet Software Features
- Industrial Protocols
- Ethernet/IP (PCCC)
- Configuration Options
- MGate Manager Telnet Console
- Management
- ARP DHCP Client SNMPv1 TCP/IP Telnet UDP
- MIB
- RFC1213, RFC1317
Serial Interface
- No. of Ports
- 1
- Connector
- DB9 male for RS-232 Terminal block for RS-422/485
- Serial Standards
- RS-232 RS-422
- Baudrate
- 1200 bps to 921.6 kbps
- Data Bits
- 8
- Parity
- None Even Odd
- Stop Bits
- 1, 2
- Flow Control
- RTS/CTS DTR/DSR (RS-232 only)
Serial Signals
- RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422
- Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
- Industrial Protocols
- DF1
DF1 (Transparent)
- Mode
- Full duplex
- Max. No. of Client Connections
- 8
Power Parameters
- Input Voltage
- 12 to 48 VDC
- Input Current
- 435 mA @ 12 VDC
Relays
- Contact Current Rating
- Resistive load: 1 A @ 30 VDC
Physical Characteristics
- Housing
- Plastic top cover, metal bottom plate
- IP Rating
- IP30
- Dimensions (with ears)
- 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
- Dimensions (without ears)
- 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
- Weight
- 360 g (0.79 lb)
Environmental Limits
- Operating Temperature
- 0 to 60°C (32 to 140°F)
- Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
- EMC
- EN 55032/35
- EMI
- CISPR 32, FCC Part 15B Class A
- EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
- Safety
- IEC 60950-1 UL 60950-1 EN 62368-1 UL 508
- Hazardous Locations
- ATEX Class I Division 2 IECEx If you need an IECEx certificate for this product, please contact a Moxa sales representative.
- Freefall
- IEC 60068-2-32
- Shock
- IEC 60068-2-27
- Vibration
- IEC 60068-2-6 IEC 60068-2-64
- Maritime
- DNV
MTBF
- Time
- 1,344,456 hrs
- Standards
- Telcordia SR332
Warranty
- Warranty Period
- 5 years
- Details
- See www.moxa.com/warranty
